Product Specifications
| Prod Model: |
DF-TK907 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

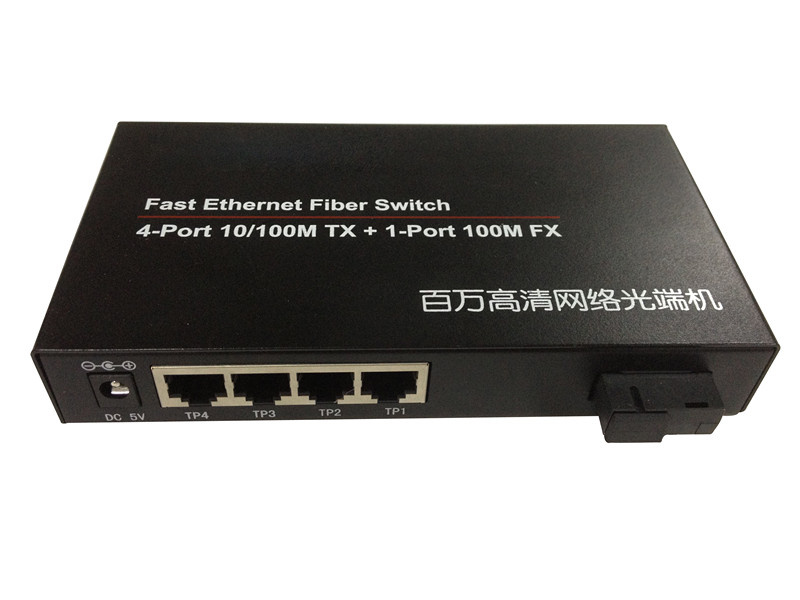

Video Optical Converter |
| Power Adapter: |
AC100 ~ 240V, DC5V 2A |
| Environment Temperature: |
0 ~ +50 |
| Storage Temperature: |
-40 ~ +75 |
| Store: |
in Stock |
| Type: |
Fiber Transceiver |
| Wiring Devices: |
Integrated Wiring |
Product Description
Series fiber optic transceivers have four RJ45 twisted-pair cable interface and one optical fiber interface, is used to connect twisted-pair cable and optical fiber, respectively. It's feature o electricity port can direct line/adaptive cross line, 10 m and 100 m self-adaption, full duplex, half duplex adaptive. And the light soldering interface can be customized according to user requirements for: SC/ST/LC/FC interface. It has a good stability and reliability.
Optical transceiver fiber interface is only 100 m full duplex mode.
Fiber module has a single-mode and multimode and fiber and single mode with double and single fiber two types, double fiber need two core optical fiber can transmit Ethernet signal, and the single fiber SFP only one core optical fiber can transmit Ethernet signals.
The main features
Provide a optical fiber interface, SC double core optical interface
Provide four Ethernet interface, Shared line speed of 100 m;
Mixer gigabit Ethernet optical transceiver supports 10 k byte oversize frames; It has 1 m bit built-in frame memory;
The support pieces port VLAN, IPv4 and IPv6.
Mixer support port convergence (Trunking) function.
Gigabit optical transceiver is small in size, low power consumption, simple and convenient use, cost-effective, suitable for the construction of low cost photoelectric combined with gigabit Ethernet.
Pieces with 12 g back bandwidth, support full duplex IEEE802.3 X flow control, flow control, can realize Ethernet frame without blocking signal exchange;
Pieces of four adaptive UTP exchange 10/100 Mbps port, each exchange port has N - WAY adaptive and full/half duplex ability;
In pieces every UTP exchange port can automatically identify straight line (MDI) and cross line (MDI - X);
Mixer support 1024 MAC address;
Mixer has the function of automatic MAC address learning and update;
Pieces automatically choose store-and-forward or direct way to reduce the delay;
Pieces for maximum 1.4 G data storage bandwidth;
Pieces of LED light is convenient to monitor the working state of each port
