Product Specifications
| Prod Model: |
RNMN, RCMN, SNMA, SNMN, WNMN, Round, Square |
| Type: |
Cutter |
| Work Type: |
External Work |
| Material: |
PCBN |
Product Description
Specifications
Manufacture solid cbn cutter
1. CBN blank imported from DI, E6
2. Large stock
3. Workpiece hardness HRC 45 to 67
Manufacture solid cbn cutter
1. High hardness, toughness and wear resisance
2. High thermo stability and high heat resistance
3. High speed cutting and finish machining
4. Work efficiency of turning improved by 5-10 times when compared to grinding
|

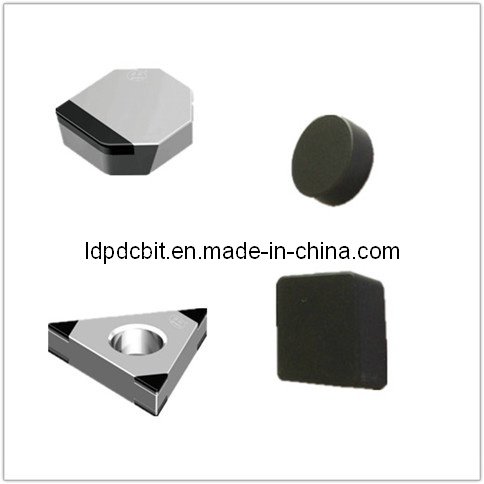

Shape of cbn cutter |
Insert |
Dimension (mm) |
|
I.C. |
T |
r |
|
|
RNMN0603 |
6.35 |
3.18 |
|
|
RNMN0604 |
6.35 |
4.76 |
|
|
RNMN0903 |
9.525 |
3.18 |
|
|
RNMN0904 |
9.525 |
4.76 |
|
|
RNMN0907 |
9.525 |
6.75 |
|
|
RNMN1204 |
12.7 |
4.76 |
|
|
RNMN1207 |
12.7 |
6.75 |
|
|
RNMN1907 |
19.05 |
7.94 |
|
|
Shape of cbn cutter |
Insert |
Dimension (mm) |
|
I.C. |
T |
r |
|
|
TNMA160404 |
9.525 |
4.76 |
0.4 |
|
TNMA160408 |
9.525 |
4.76 |
0.8 |
|
TNMA160412 |
9.525 |
4.76 |
1.2 |
|
TNMA220408 |
12.7 |
4.76 |
0.8 |
|
TNMA220412 |
12.7 |
4.76 |
1.2 |
|
Shape of cbn cutter |
Insert |
Dimension (mm) |
|
I.C. |
T |
r |
|
|
SNMN090304 |
9.525 |
3.18 |
0.4 |
|
SNMN090308 |
9.525 |
3.18 |
0.8 |
|
SNMN090404 |
9.525 |
4.76 |
0.4 |
|
SNMN090408 |
9.525 |
4.76 |
0.8 |
|
SNMN120404 |
12.7 |
4.76 |
0.4 |
|
SNMN120408 |
12.7 |
4.76 |
0.8 |
|
SNMN12T608 |
12.7 |
6.8 |
0.8 |
|
SNMN12T612 |
12.7 |
6.8 |
1.2 |
|
SNMN150720 |
15.875 |
7.94 |
2.0 |
|
SNMN201020 |
20 |
10 |
2.0 |
Contact us for more types and models!
Applica tion
|
Application |
Speed |
Feed Rate |
Depth of Cutting |
|
(m/min) |
(mm/rev) |
(mm) |
|
Hardened Steel (HRC 50-67) |
50-150 |
0.05-0.12 |
~0.2 |
|
Gray cast iron (About HB200) |
500-1000 |
0.1-0.5 |
~3.0 |
|
Super hard cast iron (HRC 50-64) |
50-100 |
0.1-0.3 |
~2.5 |
|
Powder metallurgy workpiece |
80-200 |
0.03-0.2 |
~1.0 |
|
Thermal spray coating workpiece |
50-150 |
0.1-1.0 |
~2.5 |
|
Carbide HRA=80-88 (with Co>15%) |
5-40 |
0.05-0.2 |
~0.3 |
