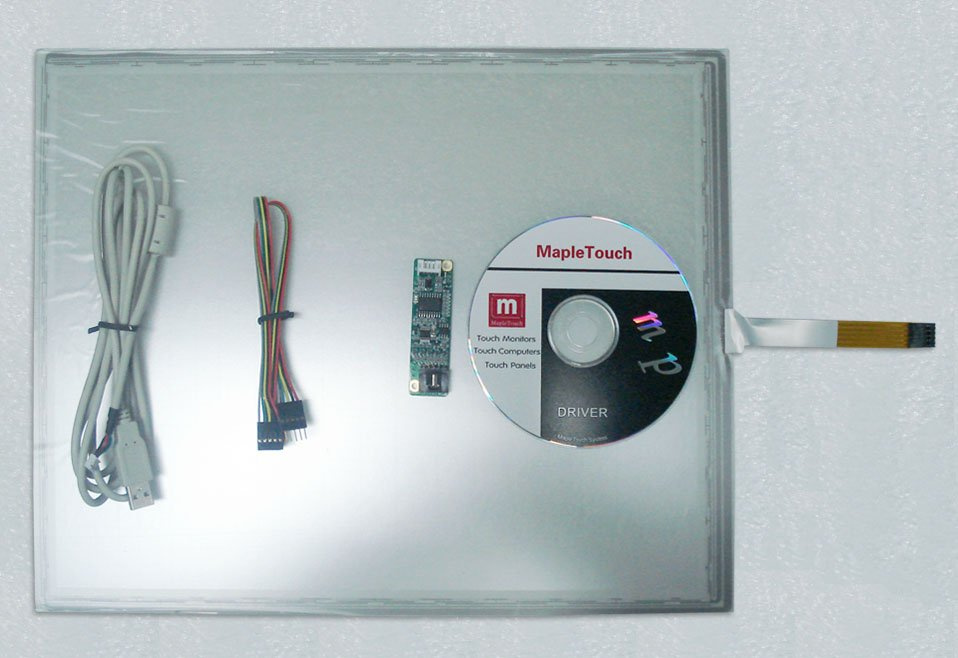

Mapletouch 5 Wire Resistive/Saw/Capacitive/IR Touch Panel

Name: Mapletouch 5 Wire Resistive/Saw/Capacitive/IR Touch Panel
Brand: china-manufacturer-directory.com
SKU: 674746475
Availability: InStock
Rating: 5 (40 reviews)

Supplier:	Guangzhou Yulian Electronic Technology Co., Ltd.
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	It All Depends

Product Specifications

Prod Model:	Mapletouch-5R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
With Touch Controller:	RS232 or USB Optional
Touch Screen Brand:	Mapletouch
Type:	5wire Resistive

Product Description

How it works
5-Wire resistive touch screen is the preferred solution for applications requiring durability and reliability over time. Similar to the 4-Wire technology, 5-Wire touch screen also consists of a conductive bottom layer (ITO Glass or ITO Film) and a conductive top layer (ITO Film). The fundamental structure difference between the two is: In the 5-wire technology, all the electrodes are placed on the bottom layer and the top layer acts only as a voltage measuring probe. Therefore, the touch screen works properly even with damages or scratches on the top layer.

Specification
Circuiting Rating: 5V DC, 35mA Surface Hardness: 3H
Light Transmission: Film+Film>77% Hitting Life Expectancy: Over 35 million
Film+Glass>83% Scoring Life Expectancy: Over 5 million
Contact Bounce: < 10ms Operating Temperature: -10 oC ~+60 oC
Resolution: 4096x4096 Storage Temperature: -20 oC ~ +70 oC
Linearity: 1.5%(< 1.0% By Request) Choices of Glass Thickness: 0.7mm, 1.1mm, 2.0mm, 3.0mm, 0.55mm
Operating Force: 10g~100g Choices of Glass: Normal Glass, Chemically strengthened glass

Highlight & Benefit
Superior durability and reliability with touch life over 35 million times.
FPC tail technology surpasses those of our competitors.
@ FPC has lower resistance and is more flexible than PET or ITO film used by other suppliers.
Excellent optical performance even with anti-glare hard coating film.
@ Capable of handling spacer dots diameter less then 0.035mm (smallest in the industry).
@ Haze < 6% (best optical performance in the industry). Various choices of surface treatments available.
@ Anti-Newton ring, anti-glare, special chemical hard coating, anti-reflection.

Standard Model

Model No.	Spec.	External Dimension	View Area Dimension	Active Area Dimension
MP-0585-IN-W5R	5.8"In	138.00x108.00 mm / 5.43"x4.25"	118.00x89.000mm/ 4.65"x3.5"	116.00x87.000 mm / 4.57"x3.43"
MP-0657-IN-W5R	6.5"In	156.00x120.00 mm / 6.14"x4.72"	136.00x100.00 mm / 5.35"x3.94"	134.00x98.000 mm / 5.28"x3.86"
MP-0747-IN-W5R	7.4"In	171.90x127.40 mm / 6.77"x5.02"	148.90x112.40 mm / 5.86"x4.43"	145.90x109.40 mm / 5.74"x4.31"
MP-0846-IN-W5R	8.4"In	208.00x152.00 mm / 8.19"x5.98"	176.00x133.00 mm / 6.93"x5.24"	171.00x128.00 mm / 6.73"x5.04"
MP-1044-IN-W5R	10.4"In	249.00x186.60 mm / 9.8"x7.35"	219.90x167.8 0mm / 8.66"x6.61"	215.90x163.80 mm / 8.5"x6.45"
MP-1215-IN-W5R-B	12.1"In	276.00x213.00 mm / 10.87"x8.39"	253.00x191.00 mm / 9.96"x7.52"	247.00x185.00 mm / 9.72"x7.28"
MP-1215-IN-W5R-C	12.1"In	271.27x205.74 mm / 10.68"x8.1"	250.87x189.40 mm / 9.88"x7.46"	246.37x184.90 mm / 9.7"x7.28"
MP-1215-IN-W5R-D	12.1"In	265.00x209.00 mm / 10.43"x8.23"	247.97x186.48 mm / 9.76"x7.34"	245.97x184.48 mm / 9.68"x7.26"
MP-1413-IN-W5R	14.1"In	321.06x249.94 mm / 12.64"x9.84"	289.68x218.31 mm / 11.4"x8.59"	287.68x216.31 mm / 11.33"x8.52"
MP-1503-IN-W5R-D	15"In	337.00x257.00 mm / 13.27"x10.12"	310.00x235.00 mm / 12.2"x9.25"	305.00x228.00 mm / 12.01"x8.98"
MP-1701-IN-W5R-D	17"In	366.00x294.50 mm / 14.41"x11.59"	342.00x274.50 mm / 13.46"x10.81"	334.00x266.50 mm / 13.15"x10.49"
MP-1701-IN-W5R-E	17"In	362.00x278.00 mm / 14.25"x10.94"	340.00x260.00 mm / 13.39"x10.24"	320.00x238.00 mm / 12.6"x9.37"
MP-1818-IN-W5R-B	18.1"In	388.00x313.00 mm / 15.28"x12.32"	363.00x291.00 mm / 14.29"x11.46"	357.00x285.00 mm / 14.06"x11.22"
MP-1908-IN-W5R	19"In	395.00x300.00 mm / 15.55"x11.81"	370.00x276.00 mm / 14.57"x10.87"	358.00x267.00 mm / 14.09"x10.51"
MP-2106-IN-W5R	21"In	438.00x331.00 mm / 17.24"x13.03"	416.60x315.00 mm / 16.4"x12.4"	303.00x227.00 mm / 11.93"x8.94"
MP-2106-IN-W5R-B	21"In	445.64x366.90 mm / 17.54"x14.44"	413.20x334.47 mm / 16.27"x13.17"	285.00x216.00 mm / 11.22"x8.50"

Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, CB, ROSH and widely applied to many fields.
