Product Specifications
| Prod Model: |
MA4.2S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Response(1W 8ohms): |
20Hz-20kHz(±3dB) |
| Balance Input: |
20kohms |
| Unbalanced Input: |
10kohms |
| (Size) (W×h×d): |
482×88×460mm |
| Output Circuit Type: |
H Class |
| Type: |
Professional Amplifier |
| Tube Type: |
Transistor Amplifier |
| Output Number: |
8 |
| Voltage: |
AC 220V |
| Conductive Mode: |
AB |
| Usage: |
Professional Preformence |
| Used For: |
Professional Preformence |
| Function: |
Professional Preformence |
| Sound Channel: |
Professional Preformence |
| Element Number: |
Professional Preformence |
Product Description

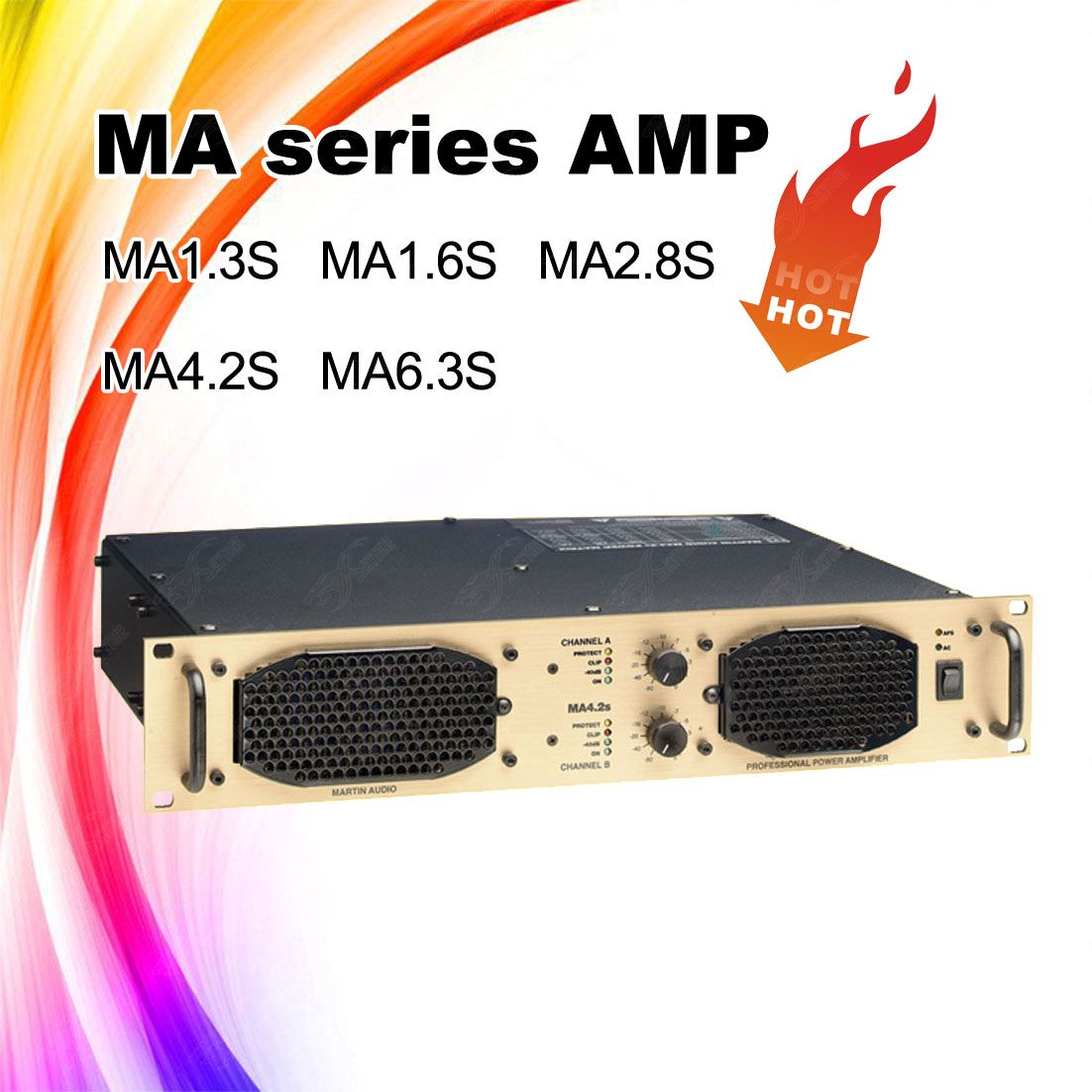

Martin Ma4.2s Style Professional Audio Amplifier
Martin style ma4.2s professional amplifier
Light weight, high performance power amplifier
The MA4.2s is one of a range of power amplifiers that have been designed to combine reliability and high power with sonic excellence. Utilising an advanced switch mode power supply, the amplifier is characterised by a very high power-to-weight ratio in a lightweight, 2U package. The innovative technology at the heart of the MA4.2s enables it to set new standards in terms of sonic accuracy, impact and clarity.
Features--Switch mode power supply
--Superior sonic performance
--Light weight
--Advanced protection circuits
--Efficient copper cooling system
--Minimum load switches (mls? )
Applications--Live sound reinforcement
--Fixed installations
| MA4.2s TECHNICAL SPECIFICATIONS |
| MAX OUTPUT POWER |
| EIA AT 1kHz AND 1% THD |
| MLS in 0dB position |
| 8 PER CHANNEL | 1300 W |
| 4 PER CHANNEL | 2300 W |
| 2 PER CHANNEL | 2900 W |
| 8 BRIDGED | 4600 W |
| 4 BRIDGED | 5800 W |
| MAX OUTPUT VOLTAGE |
| 8Ω LOAD | 102 Vrms |
| PEAK VOLTAGE, NO LOAD | 145 V |
| DISTORTION |
| THD 20Hz – 20kHz AND I W TO FULL POWER | 0.1% |
| THD AT 1kHz AND –1dB UNDER CLIP | 0.04% |
| DIM AT –3dB UNDER CLIP | 0.04% |
| HUM AND NOISE | <-105dB |
| CHANNEL SEPARATION @ 10kHz | 80dB |
| OUTPUT IMPEDANCE | 60 mΩ |
| SLEW RATE | 20 V/µs |
| INPUT |
| GAIN SELECTABLE (dB) | 20, 23, 26, 29, 32, 35, 38, 41 |
| IMPEDANCE | 10 kΩ |
| COMMON MODE REJECTION | 50dB |
| FRONT PANEL |
| GAIN CONTROLS | 31 position detent |
| INDICATORS: PROTECT | Yellow LED |
| INDICATORS: CLIP | Red LED |
| INDICATORS: SIGNAL PRESENT (-40dB) | Green LED |
| REAR PANEL |
| INPUT CONNECTORS | Neutrik Combo |
| LINK CONNECTORS | XLR-Male |
| CLIP LIMITERS | On/off each channel |
| MLS SWITCH | 0, -2, -4, -5dB |
| LINK - SWITCH | CH. A-B |
| POWER |
| OPERATION VOLTAGE | 130-270V |
| SOFT START | Yes |
| PEAK INRUSH CURRENT | 5 A |
| FULL OUTPUT POWER | 180 - 260 V |
| MIN START VOLTAGE | 175 V |
| 115V OPTION | Yes |
| CURRENT DRAW AT 4Ω/230V |
| QUIESCENT POWER (NO LOAD) | 0.6 A rms |
| 1/8 OF FULL POWER (-9dB) | 6 A rms |
| 1/3 OF FULL POWER (-5dB) | 14 A rms |
| AT FULL POWER (0dB) @ 1kHz 1%THD | 26 A rms |
| DIMENSIONS |
| WIDTH | 483mm (19ins) |
| HEIGHT | 88mm (3.5ins) 2U |
| DEPTH (incl. handles) | 393mm (15.5ins) |
| WEIGHT | 10kg (22lbs) |
