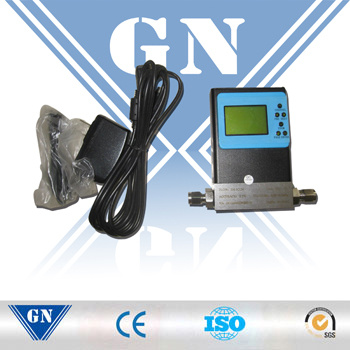

Mass Air Flow Meter (CX-MFC-XD-600)
Product Specifications
| Prod Model: |
CX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Experience: |
More 20 Years |
| Exported: |
More 80 Countries |
| Price: |
Competitive |
| Maintenance: |
Less and Easy |
| Quality: |
World-Class |
| Measuring Media: |
Gas |
| Accuracy: |
?à0.6-1% |
| Size: |
DN10-50 |
| Main Application: |
Corrosive Liquid/Gas |
Product Description
Application: Mass Flow Meter and Mass Flow Controller are use to measure and control gas accurately. It's widely used in fields of Semi-conductor / Vaccume / Solar energy / Analyze instrument / photoelectricity / Gas manufactory / Medicare / Power etc.
Features: Very low zero drift and temperature drift. It can measure over 60 types of gas. User can set medium parameters / customize flow range / customize low pressure difference / real-time curve output. User can select different color. User can collect data into EXCEL form. Controlling form: RS232 / RS485 / 0-5V / 4-20MA / different section control / different section combination / High-low level alarm.
Technical Data:
| 1 | Flow range | (0-5,10,20,30,50,100,200,300,500)SCCM
(0-1,2,3,5,10,20,30,50,100)SLM |
| 2 | Accuracy | 1%FS |
| 3 | Linearity | 0.5%FS |
| 4 | Repeatability | 0.2%FS |
| 5 | Responding time | Less than 1s |
| 6 | Pressure difference | (0.0500.3)Mpa |
| 7 | Max.Pressure | 10MPa |
| 8 | Working temperature | 5-65ºC |
| 9 | Input/output | Digital:RS232/RS485
Analog: 0-5vdc or 4-20mA |
| 10 | Power Supply | 7-16vdc,1A |
| 11 | Weight | 1.0kg |
Payment Terms of electromagnetic flow meter
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
After-sales service of electromagnetic flow meter
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.
Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. Now company involves in polyurethane, fuel consumption, automotive, dispensing robots, semiconductors, odorizing equipment, batteries, electricity, telecommunications, petroleum, chemical, coal, metallurgy, water conservancy, food, medical, machinery and other industries. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
Now we have super mirco flow meter, oval gear flow meter, coriolis mass flow meter, electromagnetic flow meter, piston flow meter, and Spur gear flow meter, gear pump, gear metering pump. There is no other manufactures who can produce micro flow meter and many company import this kind of flow meter from Japan or America. After we put our micro flow meter into market, the news was spreaded widely and we got many reputation from our client. We now have sold this flow meter to more than 100 countries which contain wide and different applications. Meanwhile our oval gear flow meter has aquired many certificates and filled the vacancy of Chinese market. At the same time, in order to cooperate with the whole set of sales and services of the product, we can also produce supporting quantitative systems, various proportioning systems and industrial automation systems, allowing customers to have a wider range of choices.
Business Type: Trading Company
Number of Employees: 16
Management System Certification: ISO 9001
International Commercial Terms: FOB, CIF, CFR
Terms of Payment: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Average Lead Time: Peak season lead time: within 15 workdaysOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 4~10 People
Export Year: 2005-12-01
Export Percentage: 51%~70%
Main Markets: North America, Europe, Southeast Asia/ Mideast
Export Mode: Have Own Export License
Factory Address: Room 402, Block B, Shuangzi Building, No.668, Bianzhu, Xinqiao Town, Songjiang District, Shanghai, China
R&D Capacity: OEM, Own Brand()
No. of R&D Staff: 5-10 People
No. of Production Lines: 3
Annual Output Value: US$2.5 Million - US$5 Million
