Laryee Technology Co., Ltd. >> Material Compression Hydraulic Testing Machine (CH24XX)

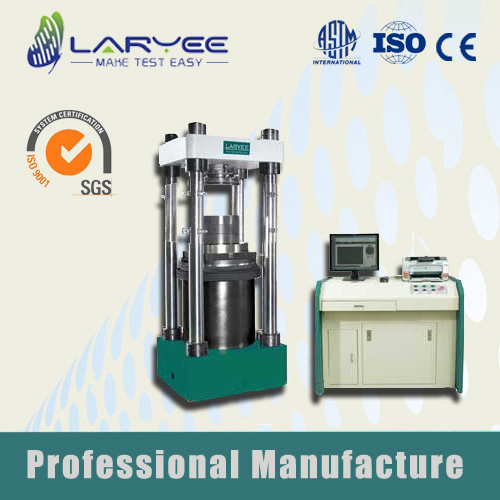

Material Compression Hydraulic Testing Machine (CH24XX)

Name: Material Compression Hydraulic Testing Machine (CH24XX)
Brand: china-manufacturer-directory.com
SKU: 724954465
Availability: InStock
Rating: 4.8 (128 reviews)

Supplier:	Laryee Technology Co., Ltd.
Price:	US $ 13860-15183Unit
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CH24100. CH24200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Material Compression Hydraulic Testing Machine
Measuring Range Of Force:	4%-100%
Drive:	Hydraulic
Max. Load:	2000kn
Accuracy Of Testing Force:	-1%--1%
Loading Speed:	0.3kn/S~20kn/S
Standards:	Designed as Per British Standards
Power Supply:	3p~380/220V,50/60Hz
Type:	Material Compression Hydraulic Testing Machine
Maxcapacity:	2000kn
Power Source:	3p~380/220V,50/60Hz

Product Description

Indroduction
These machine are used for the compression test of all kinds engineering material of wood material, metal support and building materials, such as brick, cement, concrete specimen and component, etc. Equipped with special accessories, it can be used for bending or flexure resistant test of building materials and compression resistant test of red bricks. They are essential testing instruments for quality control testing section, university and college, research institution and industrial and mining enterprise laboratory. The machine is calibrated as ASTM E4 and ISO 7500-1 international standard. It can do the test of ISO 679, ISO 3893, ASTM C39, ASTM C495, ASTM C873, DIN, BS, EN testing standards.

Machine frame is stable and easily to install and release test sample

Fully computer control loading process.

Specification:

Model	CH24100	CH24200
Measuring range of force	4%-100%
Accuracy of testing force	±1%
Loading Speed	0.3KN/S~20KN/S
Upper plates size (mm)	Ø220	Ø300
Distance between two platens (mm)	300	500
Width of testing space (mm)	580	580
Maximum piston stroke (mm)	200	200
Power supply	3P~380/220V,50/60Hz
Working environment	10ºC~40ºC,

Laryee Technology is a top leading Chinese testing equipment and instrument product manufacture and solution system integration supplier.Our Headquater is located in Beijing, China.And also we have two factories which invested by LARYEE base both in Beijing and Jinan, Shandong provice.According to all kinds of testing requirement of GB, ISO, ASTM, BS EN and etc, our international technician and business team can offer our different field customer best testing solutions and general or special equipments.

Laryee's nice new products, superior technology, excellent quality and well service have won the customers all over the world.Nowadays, Laryee has the good relationship with many customers such as Southeast Asia, Middle East, Latin America, Africa, European and so on.
