Product Specifications
Prod Model: |
FS-C081 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Export Markets: |
Global |
Factory: |
Chemical and Thermal |
Size: |
as Buyer's Requirement |
Life Time: |
>50years |
Design: |
Professional Design |
Design Data: |
Offered by Customer |
Type: |
Heavy Section Steel |
Standard: |
GB |
Forming: |
Hot-Rolled Steel |
Connection Form: |
Bolt Connection |
Member: |
Steeltruss |
Type Of Steel For Building Structure: |
High-Strength Steel |
Residential Wall Structure: |
Wallboard |
Application: |
Steel Structure Bridge |
Trademark: |
Q345 |
Carbon Structural Steel: |
Q345 |
Product Description
Product Description

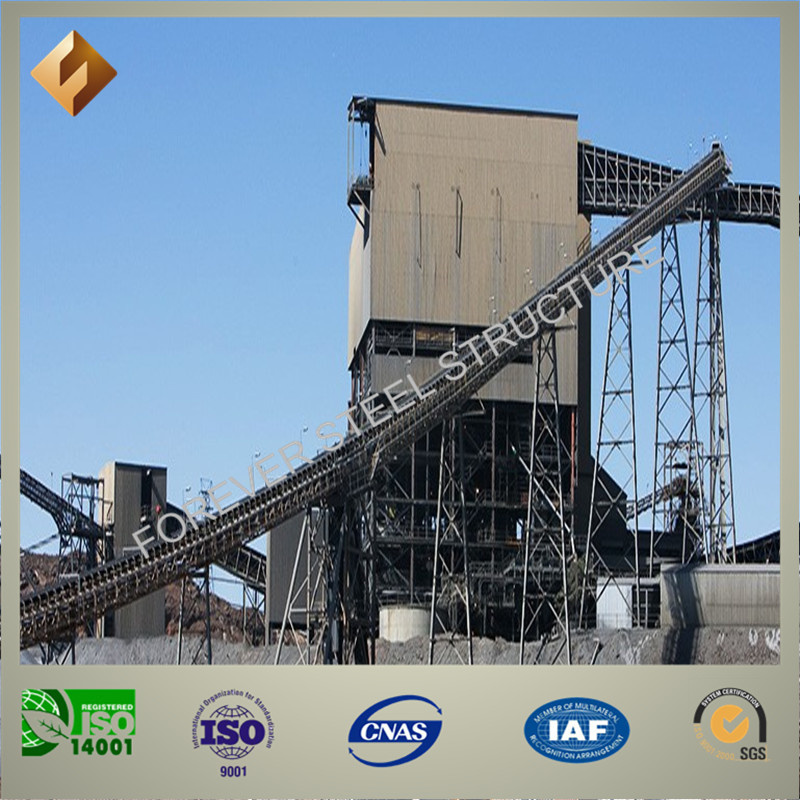

General Description material feed conveyor of Trestle Structure :
Material feed conveyor of trestle structure is a very important functional part in chemical plants acting in the fuel supplying system. Connecting the coal fuel from outside, inside and coal processing system, the conveyor gallery guarantees the continuous supply of fuel that supports the operation of the generators. Divided by the structure bearing type, there are reinforced concrete galleries, steel structure galleries and masonry structure galleries. Steel structure coal belt conveyor galleries are most widely used in power plant construction owing to the advantages in good-looking shape, large span, short construction period, light structure weight and excellent seismic performance.
Technical Parameter of material feed conveyor of Trestle Structure r:
1. Steel frame: The chord members of large span coal belt conveyor gallery can be made of steel angles, H beams (welded or hot rolled), steel pipes among which H beam trusses are becoming more and more widely used.
2. Cladding system: In areas without insulation requirement the cladding sytem can be made of single steel corrugated color sheets. In cold areas cladding systems are usually designed as insulation sandwich panels combined on site.
3. Floor: Floor of coal belt conveyor can be prefab floor deck or poured concrete on site.
Material List |
Foundation | Anchor bolts |
| Canopy | steel frame + steel sheet |
Column | H section steel | Roof cladding | EPS sandwich panel |
Tubular pillar | PU sandwich panel |
Lattice column | Rockwool sandwich panel |
Cross column | Corrugated steel sheet |
Box column | Skylight panel |
Beam | H section steel | Ventilator |
Lattice beam | Wall cladding | EPS sandwich panel |
Pipe truss | PU sandwich panel |
Space frame | Rockwool sandwich panel |
Roof purlin | C section steel | Corrugated steel sheet |
Z section steel | Mezzanine | Decking floor |
Wall purlin | C section steel | Checkered steel plate |
Tie bar | Steel pipes | Insulation | Fiber glass wool |
Roof bracing | Angle steel | Fasteners | High strength bolts |
Steel pipes | Common bolts |
Column bracing | Angle steel | Expansion bolts |
Steel pipes | Accessories | Flashing |
Pulling strap | Steel round bar | Trim |
Sleeves | Steel pipes | Gutter |
Knee bracing | Angle steel | Down pipe |
