Matrix Glitcher II Rev C Work with 250GB/Corona V2 Consoles

Product Specifications

Prod Model:	WMOX086
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sku:	X60-6059
Compatible Type:	xBox 360
Compatible Brand:	Microsoft
Type:	Flashing Tools

Product Description

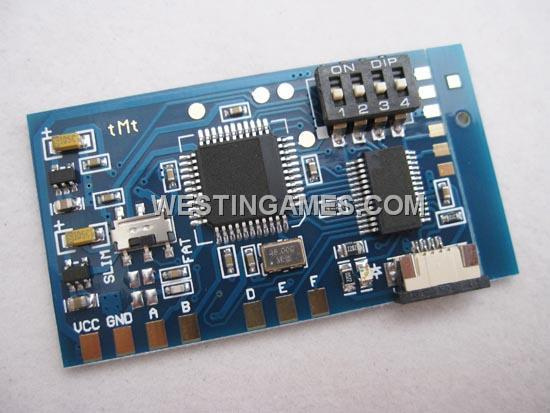

Matrix Glitcher II Rev C Work with 250GB/Corona V2 Consoles

Description:
The Matrix Glitcher II Revision C, adds full support and compatibility for 250 GB Corona (V1) and 4 GB Corona (V2) consoles.
As with the previous version the Matrix Glitcher II is still a complete plug and play solution. No need to program it before use, simply install it and select the correct switch combination for your console.
Additionally, because we discovered than Glitching the Corona needs the timing to be extremely precise, we also added a new configuration procedure using the onboard switches.
User installing the Matrix Glitcher II Revision C into a Corona will now have the possibility to test different timings to find the one that will givethem the best Glitch times on the console, and all of this without need of reprogramming.

Here is the new Switch Table Settings:
Quick switch settings chart for Glitcher 2 rev. C (onboard 48MHz oscillator):

When main switch is set to SLIM:
SW 1 2 3 4
ON ON ON ON CORONA SETTING C (-2)
ON OFF ON ON CORONA SETTING D (+1)
ON ON OFF ON CORONA SETTING B (-1)
ON OFF OFF ON CORONA SETTING E (+2)
ON ON ON OFF TRINITY SETTING
ON OFF ON OFF FUTURE USE
ON ON OFF OFF CORONA SETTING A
OFF OFF OFF OFF UPDATE MODE

When main switch is set to FAT:
SW 1 2 3 4
ON ON ON ON ZEPHYR
ON OFF ON ON FALCON
ON ON OFF ON OPUS
ON OFF OFF ON JASPER
ON ON ON OFF FUTURE USE
ON OFF ON OFF PHAT RGH 2.0
ON ON OFF OFF FUTURE USE
OFF OFF OFF OFF UPDATE MODE
