Matrix Silencer
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,FCA |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T |

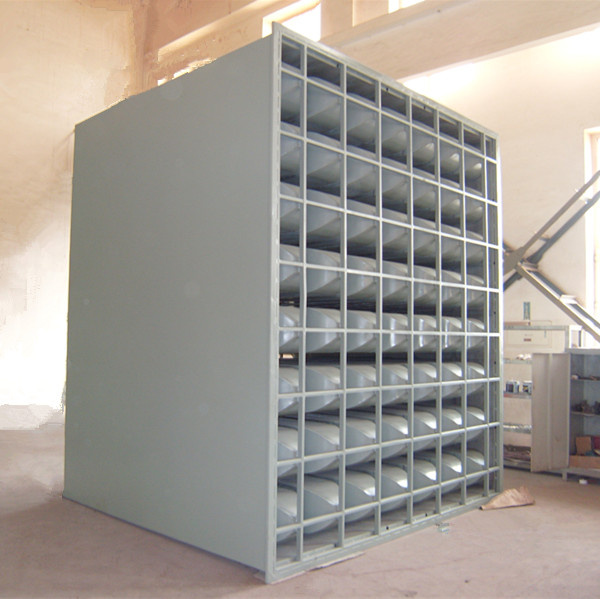

CLJZ32/CLJZ48 matrix silencer is a patent design (patent No. ZL 2005 20021593.6) and has been applied to various engineering instance.
Matrix silencers are rectangular columns arranged in array and filled on the inside with ultra-thin glass fiber pillow wrapped by glass fiber fabric. The spacing between silencers allows air flow to pass. Each end of the silencer is supported by structural hollow section. The specifications of column cross sections are 320 mm x 320 mm /480 mm x 480 mm. The shape of air defector cap is designed on the basis of twisted pair curve and punched model. And the silencing part in the column is constructed through bending over punching plate and then biting both ends into a hollow square section. Steel shell functions as sound proofing and external protection. Various materials (carbon steel, galvanized steel, stainless steel, etc.) are available for silencer parts (column punching plate, front deflector cap, front section frame, and external shell) to meet particular specification requirements. The matrix silencer would extend its shell life up to 10 years when used in working conditions without direct sunlight and rain. The stainless steel shall be used as a material replacement in corrosive salt fog at sea or extremely damp conditions
CLET has designed two matrix silencer models: CLJZ32 and CLJZ48 with the section of 320*320 and 480*480 respectively. The matrix silencer interacts with the low and middle frequency components of the noise spectrum with a reduction value of 45-65dB (A). The twisted pair air dynamic design is beneficial to maintain low pressure drop (with a flow ratio of 45%, which is adjustable when necessary).
| Prod Model: |
CLJZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Harbin Chenglin Technology Co., Ltd. Established in 2001, is located in No. 21, Xingjiang East Road, Haping Concentration Area, Harbin Development Zone. Chenglin occupies an area of 29, 800m2, and the workshop and office have an area of 22, 000 m2 in total. Chenglin is a high-tech enterprise engaged in research, design, manufacture and installation of matching silencer engineering of aero-engine test bed, matching silencer for gas turbine generator sets, and matching silencer devices of nuclear power and air separation filter, etc.
The total asset of Chenglin is more than 250 million Yuan. Chenglin has seven centers: Marketing Center, Plan Center, Research and Development center, Production Center, Quality Center, Human Administrative Center, and Financial Center. Chenglin has 300 employees, 105 of which are in charge of technology and management, 85% of them has college degree. Chenglin has domestic first-rate researchers, and they study on advanced noise elimination method with research and test to get experimental data,
And conduct a lot of experiments and investigations with material and components, and manufacturing processes required for production of noise control structures, and possess complete applications. Our patent product, which has passed the acoustic test by the INTERTEK, has creditable quality and performance for silencer and engineering applications
Chenglin invests more than 1800 million to develop a set of dies and patterns for silencer production. More than 80% of the products are manufactured by the special dies and patterns, and all of these have a decent appearance and reliable quality. The products dominate more than 85 percent in the market share of domestic aero-engine test bed and gas turbine generator market. The silencer noise reduction products take the leading position in the Chinese aviation industry and shipbuilding industry, and will become the supplier of the China Commercial Aero Engine Co., Ltd. Chenglin not only sell the products in China, but also exports products to other countries like, Britain, France, Germany, Canada, Nigeria and other 13 countries and it is the global supporting supplier of gas turbine for German Siemens and the ALSTOM, MTU global qualified supplier. Our company cooperates with the world's largest general contractor of aviation stage wagon, that is, the Canada MDS company, and provides the matching silencer for its global test bed business, and product sales has explored the international business.
Chenglin has been approved as Class A Design Institute for environment programs (noise control) by Ministry of Construction and Ministry of Environmental Protection. In 2011 our company was recognized as national high-tech enterprise, and had 18 patents of independent development.
Chenglin is certified by Beijing World Standards Certification Center with IS0900 Quality System Certification in 2002, IS014001 Environmental Management System Certification in 2009and GB/T28001 Safety System Certification. It is now operating as a quality management system with the participation of every employee.
