Product Specifications
| Prod Model: |
Jn004-13120307 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

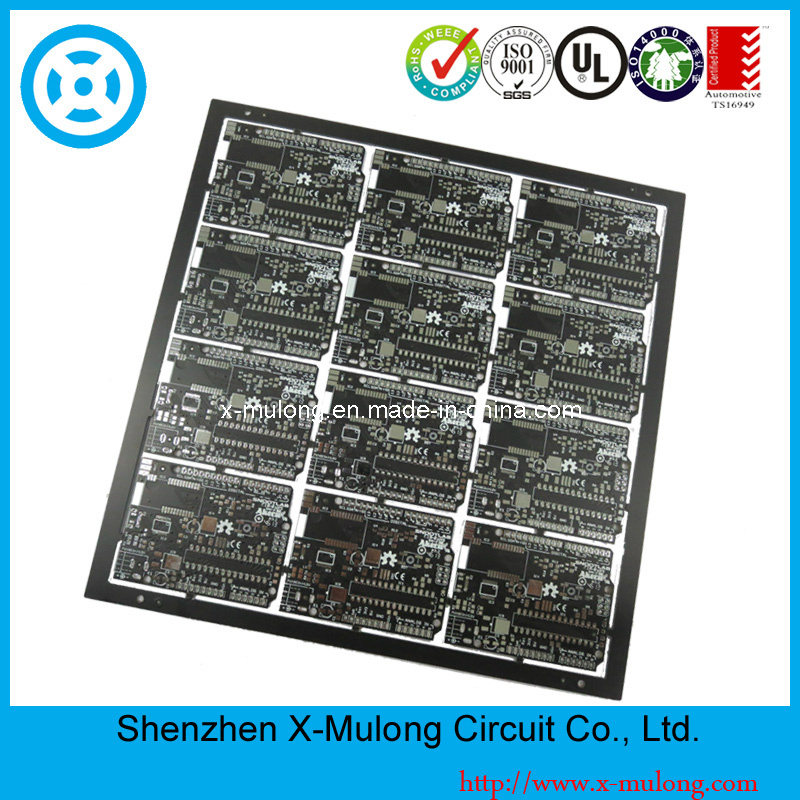

4L battery protection circuit board with LPI black solder-mask
-------------------------------------------
Number of Layers: 4L
-------------------------------------------
Base-Material: FR4
-------------------------------------------
Thickness: 1.6mm +/-10%
-------------------------------------------
Final-Cu: 35um
-------------------------------------------
Cu Inner-Layer: 17.5um
-------------------------------------------
Cu in the Hole: 25um
-------------------------------------------
Mech. Treatment: Routing and Scoring
-------------------------------------------
Surface: HASL
-------------------------------------------
Solder-Mask: Double-side, Black matte(dull)
-------------------------------------------
Add. Via-Print: Without
-------------------------------------------
Legend-Print: Double-side, White
-------------------------------------------
Blue-Mask: Without
-------------------------------------------
Peelable: Without
-------------------------------------------
Carbon-Print: Without
-------------------------------------------
Impedance: Without
-------------------------------------------
Marking: UL + Date on TopSide in silkscreen layer
-------------------------------------------
E-Test: Yes
-------------------------------------------
|
NO |
ITEM |
Techinical capabilities |
|
|
1 |
Materials |
CEM-1 CEM-3 FR-4 High-TG Teflon Rogers etc. |
|
|
2 |
layers |
1-16 layers |
|
|
3 |
Min.core material |
5mil(excluding copper) |
|
|
4 |
Prepreg type |
7628 2116 1080 3313 |
|
|
5 |
Max.board size |
520*720mm |
|
|
6 |
Copper thickness |
min.base copper 1/3 OZ |
|
|
max.finished copper6OZ |
|
|
7 |
Min.board thickness |
2- layer 10mil |
|
|
4- layer 16mil |
|
|
6-layer 24mil |
|
|
8-layer 32mil |
|
|
10-layer 40mil |
|
|
8 |
Max.board thickness |
236mil(finished board thickness) |
|
|
9 |
Min.line width/space |
3mil/3mil HOZ copper base(inner layer) |
|
|
10 |
Min.hole size |
8mil |
|
|
11 |
PTH wall thickness |
≥1mil |
|
|
12 |
Hole dia.tolerance |
±3mil |
|
|
13 |
Hole dia.tolerance |
±2mil |
|
|
14 |
Countersink hole |
Min.depth(D)6mil;The Depth of tolerance± 6mil |
|
|
15 |
Drilling hole positional deviation(outer layer) |
1st-drill ±3mil(Normal) ±2mil(min.) |
|
|
2nd-drill ±4mil |
|
|
16 |
Min.solder mask bridge |
3.2mil(HOZ base copper, green) |
|
|
17 |
Outline tolerance |
±4mil |
|
|
18 |
Twist & Bow |
≤0.75% |
|
|
19 |
Peelable mask thickness |
≥8mil 1 printing |
|
|
20 |
Insulation Resistance |
>1012Ω Normal |
|
|
21 |
Through hole
resistance |
<300Ω Normal |
|
|
22 |
Current breakdown |
10A |
|
|
23 |
Peel strength |
1.4N/mm |
|
|
24 |
S/M abrasion |
>6H |
|
|
25 |
Thermal stress |
28 degrees 20Sec |
|
|
26 |
Test Voltage |
20-300V |
|
|
27 |
Min.blind/burried via |
8mil |
|
|
28 |
Surface finish |
HAL ENIG IMAG IMSN OSP HAL+G/F ENIG+G/F |
|
|
29 |
Impedance control |
Single ended impedance 50Ω/70Ω±10% Normal |
|
|
Differential impedance 90Ω/100Ω±10% Normal |
|
|
30 |
Max.aspect ratio |
12:1 |
|
