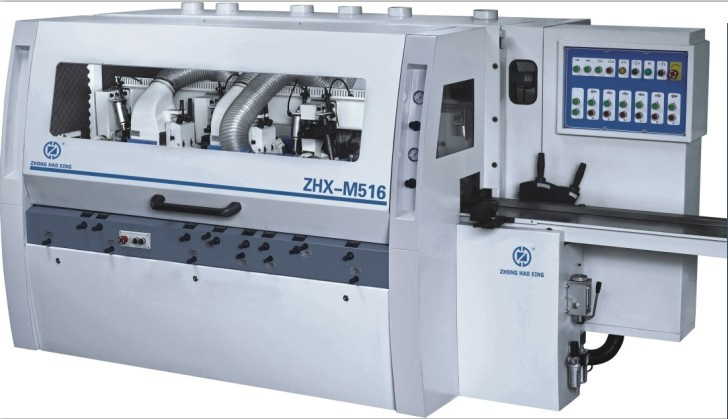

Max Working Width 160mm Five Spindle Woodworking Machinery

Name: Max Working Width 160mm Five Spindle Woodworking Machinery
Brand: China-Manufacturer-Directory.com
SKU: 724837295
Availability: InStock
Rating: 4.5 (23 reviews)

Supplier:	Foshan Zhong Hao Xing Woodworking Machine Co., Ltd.
Price:	US $ 12500SET
Min Order:	1pcs
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ZHX-M516
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Working Width:	160mm
Certification:	SGS
Motor Power:	29.25kw
Working Depth:	8-100mm
Working Width:	15-160mm

Product Description

Four-side moulder 1)Each principal axis adopts independent drive to electric motor,features stronger cutoff force. 2)Adusts for principal axis integrates at central of frontal side, features easy operation. 3)Galvanized workstation features superior abrasion resistance. 4)Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material. 5)Active roller below improves feeding efficiency. 6)Pneumatic pressing feeding roller section by section adjusts for pressing force,it favors for smooth feed-in of different thicknesses of timber. 7)Adopts central charging system,feetures convenience and promptness. 8)Equips with world-class electric element,features superior stability. 9)With fully sealed safety protective cover, this effectively avoids flying logging debris and noise blocked, and even acts as safety protection. 10)Double-deck working tables;it is easy for maintenance. 11)Pneumatic Pressing Feeding Roller Section By Section By Section Adjusts For Pressing Force, It Favors Forsmooth Feed-In Of Dfferent Thickness Of Timber.？？

MODEL: ZHX-M516
Technical Data:
ONE\Machine Parameter:
Working Thickness:	8-120mm
Working Width:	15-160mm
Operating Platform length:	1800mm
Feed Speed:	5-25m/min
Spindle Diameter:	ø 40mm
Spindle Speed:	6000r/min
Gas Source Pressure:	0.6MPa
Two\Motor Power:
The Ist Bottom Spindle:	4kw/5.5HP
The Ist Top Spindle:	5.5kw/7HP
Right Side Spindle:	4kw/5.5HP
Left Side Spindle:	4kw/5.5HP
Second Top Spindle:	__
Second Bottom Spindle:	4kw/5.5HP
Feed Beam Rise& Fall:	0.75kw/1HP
Feeding:	3kw/4HP
Total Motor Power:	25.25kw/40HP
Three\Knife Diameter:
Right Side Spindle:	ø 125-ø 160mm
Left Side Spindle:	ø 125-ø 160mm
The Ist Bottom Spindle:	ø 125
The Ist Top Spindle:	ø 125-ø 160mm
The Second Top Spindle:	ø 125-ø 160mm
The Second Bottom Spindle:	ø 125-ø 160mm
Feed Diameter:	ø 120mm
Dust Diameter:	ø 125mm
Oversea Machien Dimensions(**)mm	300015501750mm
NET Weight(kg):	2200
Gross Weight(kg):	2280
