Product Specifications
| Prod Model: |
ZHX-M416A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Working Width: |
160mm |
| Certification: |
SGS |
| Motor Power: |
21.25kw |
| Working Depth: |
8-120mm |
| Working Width: |
15-160mm |
Product Description

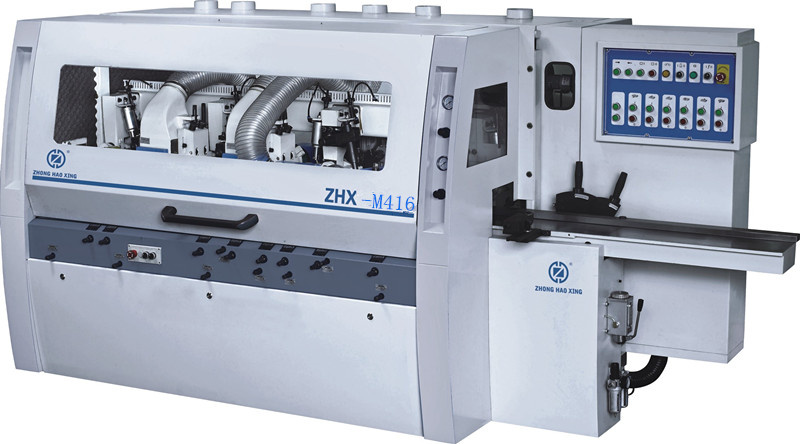

？Four-side moulder
1) Each principal axis adopts independent drive to electric motor,features stronger cutoff force.
2) Adusts for principal axis integrates at central of frontal side, features easy operation.
3)Galvanized workstation features superior abrasion resistance.
4)Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material.
5)Active roller below improves feeding efficiency.
6)Pneumatic pressing feeding roller section by section adjusts for pressing force,it favors for smooth feed-in of different thicknesses of timber.
7)Adopts central charging system,feetures convenience and promptness.
8)Equips with world-class electric element,features superior stability.
9)With fully sealed safety protective cover, this effectively avoids flying logging debris and noise blocked, and even acts as safety protection.
10)Double-deck working tables;it is easy for maintenance.
11)Pneumatic Pressing Feeding Roller Section By Section By Section Adjusts For Pressing Force, It Favors Forsmooth Feed-In Of Dfferent Thickness Of Timber.？
？
|
MODEL: ZHX-M416 |
|
Technical Data: |
|
ONE\Machine Parameter: |
|
Working Thickness: |
8-120mm |
|
Working Width: |
15-160mm |
|
Operating Platform length: |
1800mm |
|
Feed Speed: |
5-25m/min |
|
Spindle Diameter: |
ø 40mm |
|
Spindle Speed: |
6000r/min |
|
Gas Source Pressure: |
0.6MPa |
|
Two\Motor Power: |
|
The Ist Bottom Spindle: |
4kw/5.5HP |
|
The Ist Top Spindle: |
5.5kw/7HP |
|
Right Side Spindle: |
4kw/5.5HP |
|
Left Side Spindle: |
4kw/5.5HP |
|
Second Top Spindle: |
__ |
|
Second Bottom Spindle: |
__ |
|
Feed Beam Rise& Fall: |
0.75kw/1HP |
|
Feeding: |
3kw/4HP |
|
Total Motor Power: |
21.25kw/40HP |
|
Three\Knife Diameter: |
|
|
Right Side Spindle: |
ø 125-ø 160mm |
|
Left Side Spindle: |
ø 125-ø 160mm |
|
The Ist Bottom Spindle: |
ø 125 |
|
The Ist Top Spindle: |
ø 125-ø 160mm |
|
The Second Top Spindle: |
ø 125-ø 160mm |
|
The Second Bottom Spindle: |
ø 125-ø 160mm |
|
Feed Diameter: |
ø 120mm |
|
Dust Diameter: |
ø 125mm |
|
Oversea Machien Dimensions(**)mm |
3000*1550*1750mm |
|
NET Weight(kg): |
2200 |
|
Gross Weight(kg): |
2280 |
