Product Specifications
| Prod Model: |
CV-FS109 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Signal Transmission: |
Wired Alarm |
| Working Mode: |
Active |
| Certification: |
ISO |
| Application: |
Outdoor |
| Sensor Type: |
Electric Alarm |
| Working Principle: |
Electro-Acoustic Style |
| Transmission Mode: |
Cable |
| Alarm Volume (',within 1m): |
≥90dB |
| Usage: |
Industrial |
| Receive Frequency: |
1200-500 Hz |
Product Description
Description:

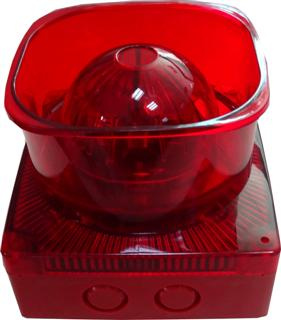

The Maxitone sounder is an ideal alternative to fire bells and for external use. It is housed in an attractive horn comprises of flame retardant ABS. Eight selectable tones and volume control are featured to meet most requirements.
The Maxitone is also available with transparent polycarbonate front which will provide both visual and audible alarm.
Specification:
Model No
CV-FS109
CV-FS109W
CV-FS109R
Function
Sound
Sound
Sound & Flash
Colour
Red
White
Red
Operating Voltage
17-30V DC
Quiescent Current
O mA
Sound Output
See current consumption table
Alarm Current @ 24V
See current consumption table
Operating Temperature
-20 ºC to 60 ºC
Minimum Continuous Temperature
0 ºC
Maximum Humidity
95% RH No Condensing
IP Rating
IP 65
Size
124*130*100 mm
Weight
357g
DIL Switch Settings (SW4 N/A)
1
2
3
Tone Description
dB Level
Current (mA)
Off
Off
Off
Sweep Negative 1200-500 Hz In 1 Second
101(+/- 2 dB)
27
On
Off
Off
Alternating 554 and 440 Hz 0.5s Each
98(+/- 2 dB)
20
Off
On
Off
Continuous 660 Hz
101(+/- 2 dB)
27
On
On
Off
Alternating 554 Hz @0.1s/440Hz @ 0.4s
98(+/- 2 dB)
19
Off
Off
On
Intermittent 970Hz @ 0.5s On/Off
98(+/- 2 dB)
20
On
Off
On
Continuous 970 Hz
103(+/- 2 dB)
29.3
Off
On
On
Sweep Positive 800-970 Hz
103(+/- 2 dB)
38
On
On
On
Alternating 800 and 970 Hz @ 0.25s Each
102(+/- 2 dB)
35
