Fato Mechanical and Electrical Co., Ltd. >> MBKM b c d curve circuit breaker

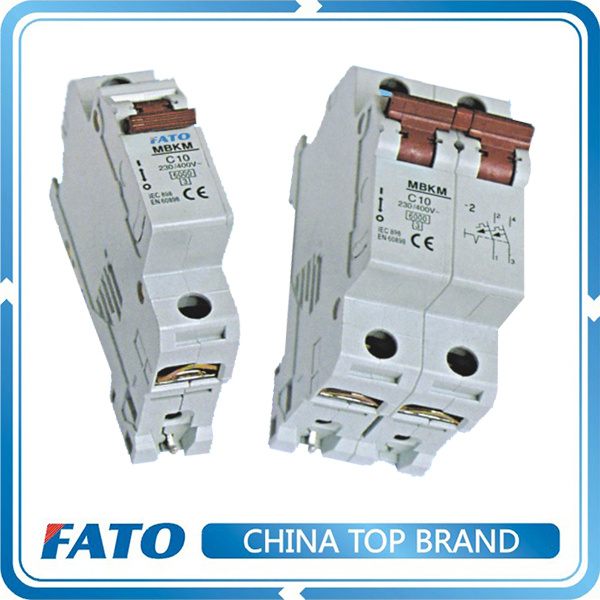

MBKM b c d curve circuit breaker

Name: MBKM b c d curve circuit breaker
Brand: China-Manufacturer-Directory.com
SKU: 762453795
Availability: InStock
Rating: 4.5 (111 reviews)

Supplier:	Fato Mechanical and Electrical Co., Ltd.
Price:	US $ 0.8/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	MBKM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Bkm
Rated Voltage:	415V
Poles:	1, 2, 3, 4
Rated Current:	50A
Making And Breaking Capacity:	6ka
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	4
Certification:	CCC

Product Description

MBKM b c d curve circuit breaker

APPLICATION

The design on the base of the current-limiting device increases the capability of circuit breaking, with a max. Of 7.5KA(AC220V standard)
The super-miniature and light product leaves the installation area minimum.
The over current protection of bimetal sheet and the instantaneous and short-circuit protection featuring solenoid trip produces a perfect protection to current fault.
Delicate appearance of Europe-style
Available to fit such accessories as auxiliary switch(AX) and alarm switch, etc.

SPECIFICATION

Pole 1pole 2pole 3pole
series	MBKM
tripping type	B,C,G
poles	1.2.3
rated Voltage(V)	240/415
Rated Current(A)	6,10,16,20,25 ,32,40,50,63
Breaking Capacity(KA)	B type:10KA, C type:6KA, D type:6KA
Tripping Device	Themal-coil magnetic
Auxiliary switch & alarm switch
Rated operational current	220V 3.5A
(AC11 duty)	415V 2A
Mechanical lifespan	2000,Operations
Terminal capacity	0.75, 2.5mm
Weight	0.04kg /EA

Founded in 1986, China FATO MECHANICAL & ELECTRICAL EQUIPMENT GROUP COMPANY Ltd. Is being acknowledged as one of the most respected nationwide manufactures and exporters of low voltage electrical apparatus in P. R of China.

The Group, comprising more than 60 factories, owns a production area of 150, 000M2 and employs more than 3, 000 staff. During the past 18 years, we invested abundant resources in both research and development and employee training programs. The Group was ranked in the front of 100 tops of national private enterprises and 100 tops enterprises of Chinese Mechanical Industry. "FATO" is named as a famous trademark in domestic and overseas markets. Our company has took the lead in applying ISO9001 Quality Management System, ISO14001 Environmental Management System and OHSAS18000 Occupational Health and Safety Manangement System in same trade. Many products are certified under international certificate, such as CB, CE, BS, VDE, UL.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of Circuit breakers, Contactors, Relays, Starters, Switches, Panel meters, Fuses, Mechanical instruments and Electrical accessories etc. And we have already established great business relationship with renowned customers in South East Asia, Middle East, South America, Africa and EEC.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"

Can keep us survive and succeed in today's highly competitive market. Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed. Just Tell Us Your Requirements and Let Us Do The Rest For You!
