Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Circuit Breaker |
| Function: |
Circuit-Breaker Failure Protection |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Certification: |
CE |
| Operation: |
Manual Type |
| Installation: |
SMD |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Moulded Case Circuit Breaker |

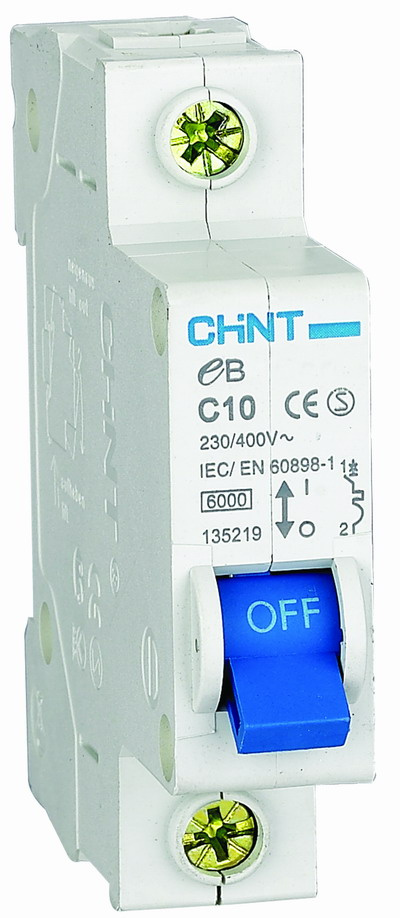

Product Description
Overload protection
Switch
Isolation
Contact position indicator
Short circuit protection
Technical features
Standard: IEC/EN 60898-1
Rated current In (A): 1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63
Poles: 1P, 2P, 3P, 4P
Rated voltage Ue V: 230/240 ~240/415
Thermo-magnetic release characteristic: B, C, D
Rated frequency Hz: 50/60
Rated breaking capacity A: 3K/4500
Rated impulse withstand voltage(1.2/50) Uimp V: 4000
Electrical life: 4, 000
Mechanical life: 10, 000
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Terminal connection type: From top and bottom
Auxiliary contact: Yes
Shunt release: Yes
Under voltage release: Yes
Alarm contant: Yes
CHINT is a leading player in the Low-voltage electrical, Power Transmission and Distribution industries in China. Its sales turnover reached $2 Billion by the end of year 2006.
In the year of 2006, CHINT ranked 15th in the list of top100 Companies released by Forbes, which evaluated all private companies (both those listed as public and not) in China. CHINT was appraised No. 1 in the Power Transmission & Distribution and Controlling Devices Sector in China machinery Summit. CHINT was also nominated as National Well-known Trademark, one of the most prestigious honors for outstanding enterprises, by China State Administration for Industry and Commerce.
CHINT was founded in July 1984 in Wenzhou. In the last 22 years, CHINT has expanded from a home workshop of 7 workers to a leading manufacturer of electrical products, with eight specialized branches, over 800 specialized partners and 16, 000 employees. Main products lines of CHINT cover the following categories: High, Medium and low voltage electrical apparatus, power transmission and distribution equipments, measuring meters and instruments, electrical products for construction, automation control devices and automobile applications.
