Product Description

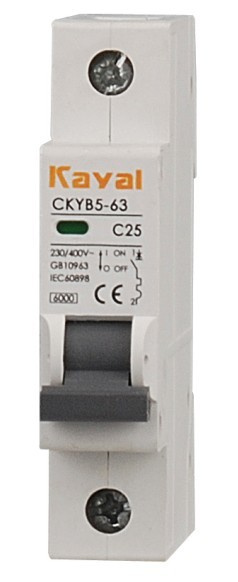

CKYB-63 MINI CIRCUIT BREAKER
GENERAL
1.1Applications:
For protecting cables and equipment against overload and short circuit
1.2General rules for choosing MCB.
A. Technical data of the network at the point considered: The earthing systems (TNS, TNC). Short-circuit current at the circuit-breaker installation point, which must always be less than the breaking capacity of this device, Network normal voltage.
B. There are 2 curve characteristics for magnetic operation:
B. Curve (3-5In) protection and control of the circuits against overloads and short-circuits: Protection for people and big lengthcable in TN and IT systems.
C. Curve (5-10In) protection and control of the circuits against overloads and short-circuits: Protection for resistive and inductiveloads with low inrush current.
Standard IEC/EN60898-1
Mechnical features Electrical life 4, 000
Mechahical life 10, 000
Protection degree IP20
Reference temperature for setting of thermal element C 30
Ambient temperature (with daily average≤ 35C) C -5...+40(Special application please refer to P26 for temperature compemsation correction)
Storage temperation C
Installation Terminal connection type Cable/U-type busbar/pin-type busbar
Terminal size top/bottom for cable mM2 25
AWG 318
Terminal size top/bottom for busbar mM2 25
mM2 318
Tightening torque Nm 2
In-Ibs. 18
Mounting On DN rail EN 60715(35mm)by means of fast clip device
Connection From top and bottom
Rated cuurent In(A) Temperature compensation coeffcient under varios operational temperature
-10C 0C 10C 20C 30C 40C 50C 55C 60C
6 1.2 1.14 1.09 1.05 1.00 0.96 0.8 0.75 0.7
10-32 1.18 1.12 1.08 1.04 100 0.96 0.92 0.88 0.84
40 1.16 1.12 1.07 1.03 1.00 0.94 0.87 0.83 0.8
Standard IEC/EN60898-1
Electrical features rated current Ln 6, 10, 16, 20, 25, 32, 40, 50, 63
Poles A 1P, 2P, 3P, 4P
Rated voltage Ue V 230/400
Insulation voltage Ui V 500
Rated frequency 50/60HZ
Rated breaking capacity A 6000
Rated impulse withstand voltage(1.2/50)Uimp standard V 4000
Dielectric test voltage at ind, Freq, for 1 min kV 2
Pollution degree 2
Themo-magnetic release characteristic B, C
