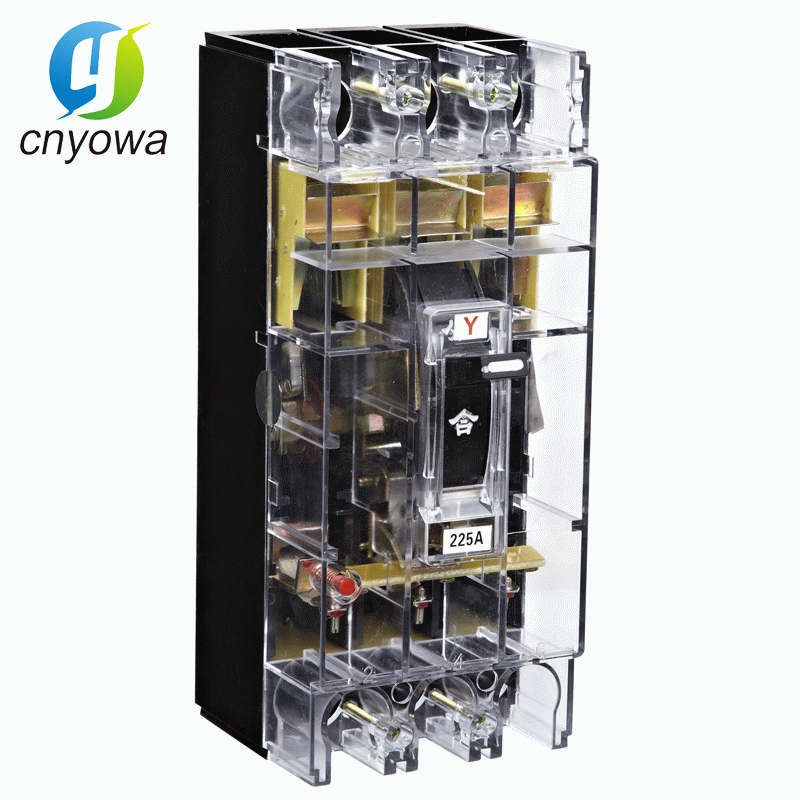

MCCB Moulded Case Circuit Breaker

Product Specifications

Prod Model:	DZ20Y-100T/3320
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure:	MCCB
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CCC
Operation:	Electric Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker

Product Description

Specifications DZ20 series molded case circuit breaker (hereinafter referred to as circuit breaker) is suitable for circuit of AC 50Hz (or 60Hz), rated insulation voltage 660V, rated working voltage 380V (400V) or below and rated current from 16A to 1250A. The circuit breakers take the role of infrequent turn-on or turn-off and infrequent motor start-up. The breakers have over-load, short-circuit and under-voltage protection performances so to protect the circuit and power appliance from damage. The breaker could be installed vertically(upright) or horizontally(transverse). The breaker could not be wired adversely, 1, 3 and 5 can only be connected with power line, 2, 4 and 6 con only be connected with load line.
