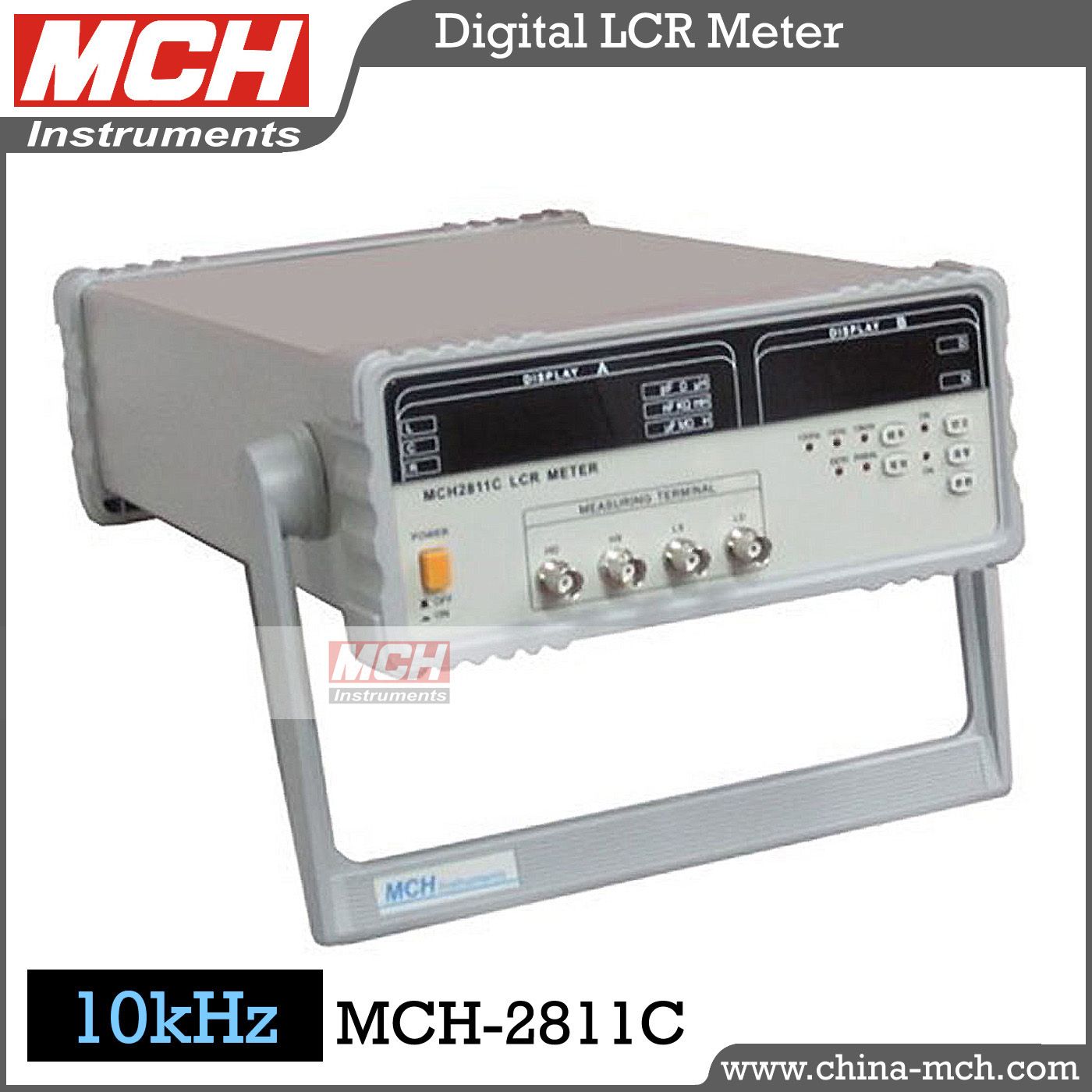

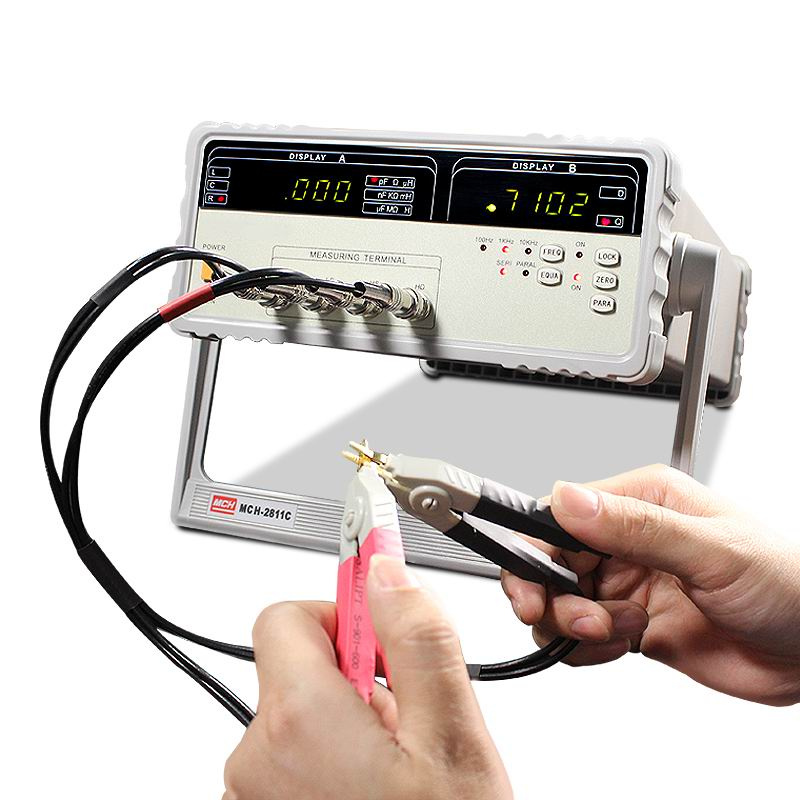

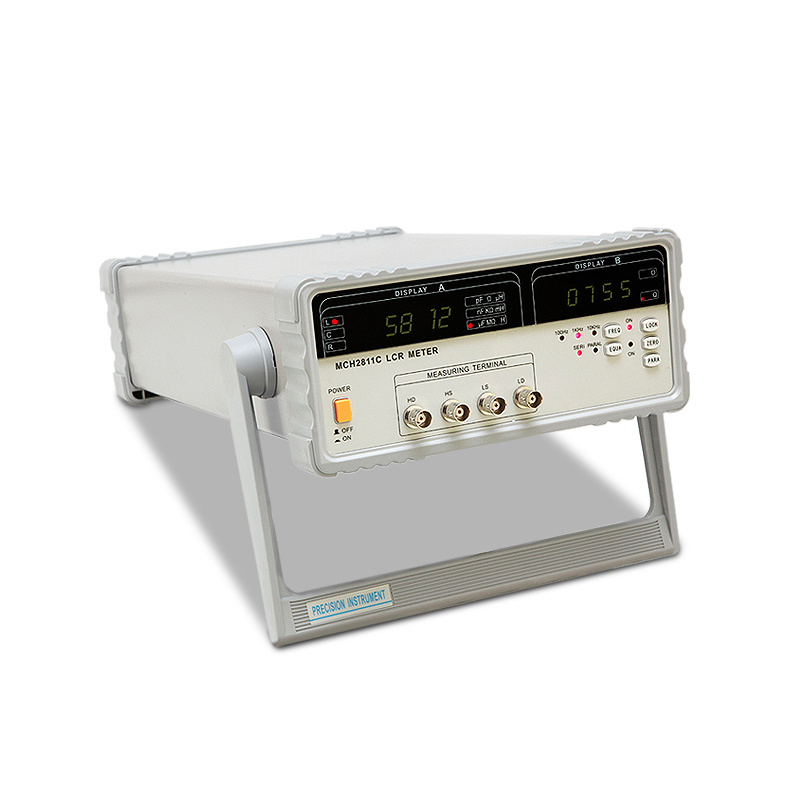

(MCH-2811C) 10kHz L-Q C-D R-Q Digital Lcr Meter
Product Specifications
| Prod Model: |
MCH-2811C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Quick Details of the LCR meterPlace of Origin: Guangdong, China (Mainland)
Brand Name: MCH
Model Number: MCH-2811CPackaging & DeliveryPackaging Details: Standard export cartons: 1.3units per carton. 2. Inner dimension: 46*23*180cm, GW: 5kg/PC 3. Outer dimension: 46*23*54cm
Delivery Detail: About 20days for above 100PCS, supply from stock to small orderSpecificationsLCR Meter Product:
1. L-Q, C-D, R-Q test
2.3 typical test FREQ. In 100Hz-10kHz
3. High stability, low price w/ standard function
Features:- Low price with standard functions
- 3 typical test frequencies in 100Hz to 10KHz
- High stability
|
Specifications Model: MCH-2811C |
|
Measuring Parameters |
L-Q , C-D , R-Q |
|
Test Frequency |
100 Hz , 1 kHz , 10 kHz |
|
Test Level |
0.3Vrms |
|
Basic Accuracy |
0.25% |
|
Display Range |
R 0.001 Ω-99.99 MΩ
C 0.01 pF -19999 µF
L 0.01 µH -9999 H
D 0.0001 - 9.999
Q 0.001 - 9999 |
|
Sampling Rate |
Approx.5 times/sec. |
|
Equivalent Circuit |
Series, Parallel |
|
Test Mode |
Auto, Hold |
|
Calibration |
Open circuit, Short circuit and Zeroing |
|
Test Ports |
5 terminals |
|
Display Mode |
Direct readout |
|
Operating Ambient |
0C° - 40C°, =90% RH |
|
Power supply |
198V~242V AC, 47.5 Hz~52.5Hz |
|
Power Consumption |
≤20VA |
|
Dimension(WxHxD) |
360 mm × 125 mm × 320 mm |
|
Weight |
Approx. 3.5kg |

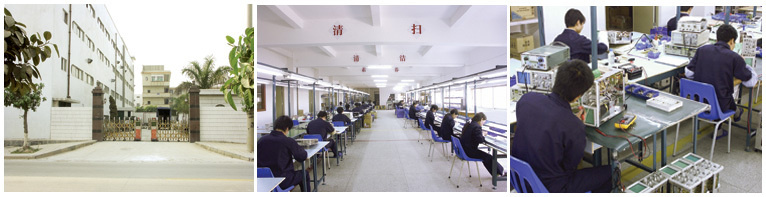

The company was found in 1995. After ten years of development, it has become strong not only in size, but also in production and R&D capability. Quality first, service utmost and economic pricing is our consistent commitment. We look forward to being your long-term partner.
We guarantee products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
1. MCH specializes in manufacturing up to hundred models of measuring instruments whole world since year 1996, such as analogue/digital Oscilloscope, arbitrary Function/Signal Generator, Spectrum Analyzer, Frequency Counter, Millivoltmeter, DC power supply, and etc.
2. All instruments will be attached necessary accessories and one year factory warranty.
3. We can produce large customized order according to customer requirement.
4. Since we are direct producer and seller, you can get fastest customer service.
5. We Promise you a profitable business and timely delivery.
