Product Specifications
Prod Model: |
MCV-200C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Frequency: |
8~150 Breaths/Min |
I/E Ratio: |
1:1~1:3 and Inverse Ratio |
Driving Pressure: |
0~0.08MPa |
Certification: |
ISO13485 |
Classification: |
Portable Ventilator for Beasties |
Type: |
Portable Ventilator for Beasties |
Product Description

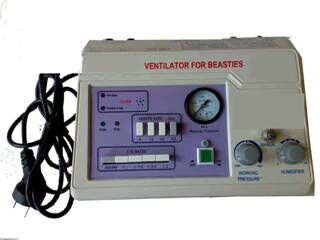

Portable Ventilator for Beasties
(OPENING BEASTIES VENTILATOR)
Model: MCV-200C
Feature for Portable Ventilator for Beasties:
MCV-200C ventilator for beasties is designed according to the principle of open jet ventilator, its ventilation mothod is not only high frequency with low tidal volume but also regular frequency with great tidal volume.
A. Adopted the ventilation technique which is opening high frequency with low tidal volume, the airway pressure is low , little interference to bloodstream reflux, effect of oxygen compound is good , the oxygen partial pressure can be increased rapidly. When great tidal volume is adopted, CO2 can be discharged easily.
B. Convenient connecting, it can be connected through the nasal and endotracheal tube, also can connect directly from chest .
C. The ventilation mode with high frequency and low tidal volume will not easily
produce pressure injury .
D. The effect of oxygen diffusion is so good that the tested beastie can stand for a long time.
E. Adjustable oxygen concentration, the ventilation mode with continuous supply oxygen good humidifying effect can ensure beastie to respire independently.
F. apply to manual ventilation test for monkey, rabbit, dog etc small animal .
G. Configured with multiform ventilation tube for beastles or connected with gas source.
Specifications for Portable Ventilator for Beasties:
Frequency | 8~150 breaths/min |
I/E ratio | 1:1~1:3 and inverse ratio |
Driving Pressure | 0~0.08MPa |
Gas source | High-pressure oxygen source or air compredsor. The input pressure is not less than 0.16MPa |
Output Limit of regulator | not less than 0.16MPa |
Output Limit of reductor | not less than 0.16MPa |
Ventilation Mode | HFJV(High Frequency Jet Ventilation);CPAP(Continuous positive airway pressure),Manual Control Mode. |
