Product Specifications
| Prod Model: |
MIK-LWGY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Application: |
Liquid, Water, Oil |
| Sensor: |
Tube/Flange |
| Type: |
Turbine Flow Meter |
| Measuring Media: |
Liquid |
| Accuracy: |
±1%R\±0.5% |
| Size: |
Customizable |
Product Description
Product introduction

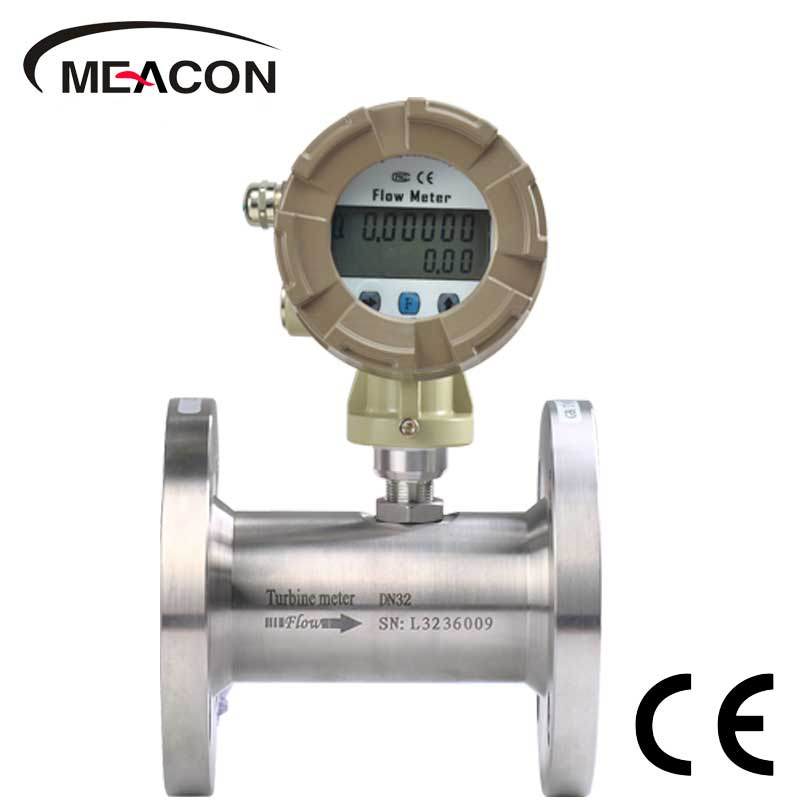

Liquid Turbine Flowmeter has these features: high accuracy, good repeatability, convenient installation/maintenance, simple structure etc.
Liquid flows through the turbine housing causing an internal rotor to spin. As the rotor spins, an electrical signal is generated in the pickup coil. This signal is converted into engineering units (liters, cubic meters, gallons etc.) on the local display where is applicable. Optional accessory modules can be used to export the signal to other equipment.
Upon receipt, examine your meter for visible damage. The turbine is a precision measuring instrument and should be handle carefully. Remove the protective plugs and caps for a thorough inspection. If any items are damage or missing, contact Manufacturer.
Make sure the turbine flow model meets your specific needs. For your future reference, it might be useful to record this information on nameplate in the manual in case it becomes unreadable on the turbine. Refer to the nameplate for your customized product's specification.
Product specification
| Measure media | Liquid or gas |
| Diameter Nominal | DN4~DN200 |
| Accuracy | ±1%R; ±0.5%R; ±0.2%R (Can be customized) |
| Signal output | 4-20mA, 0-5V, Square wave pulse (voltage type) |
| Working temperature | -20~60ºC; 5%~90%RH |
| Connection way | Screw thread; Flange; Clamps |
| Communication | RS-485,MODBUS-RTU |
| Case material | Stainless steel 1CR18NI9TI, 316L(Sanitary) |
| Explosion class | EXIA II CT4(Intrinsically safe) or EXD II BT6(Flameproof) |
| Protection Class | IP65 or IP68 |
If you want to order our product, please contact us.
