Zhejiang Nonarc Electric Co., Ltd. >> Meba AC Contactor (LC1-D25)

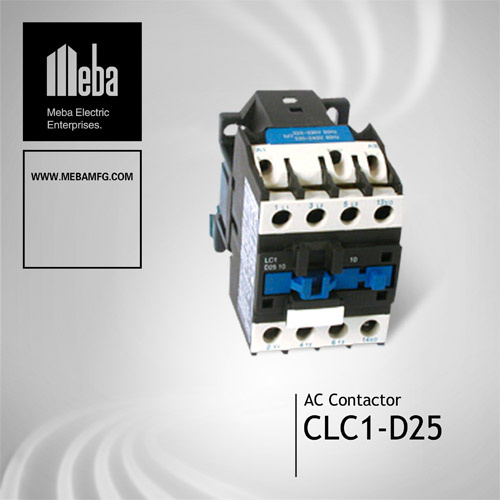

Meba AC Contactor (LC1-D25)

Name: Meba AC Contactor (LC1-D25)
Brand: china-manufacturer-directory.com
SKU: 695292495
Availability: InStock
Rating: 4.8 (24 reviews)

Supplier:	Zhejiang Nonarc Electric Co., Ltd.
Price:	US $ 3.27/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Thermal Relay
Size:	Miniature

Product Description

MEBA AC Contactor:

LC1-D series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply with IEC60947-4.

Model No: LC1-D25
Voltage: 220V
Poles: 3poles

Model		D09	D12	D18	D25	D32	D40	D50	D65
Rated working ccurrent(A)	AC3	9	12	18	25	32	40	50	65
Rated working ccurrent(A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28
AC3 capacity of 3 squirrel-cage motor AC3(KW)	220/230V	2.2	3	4	8.5	7.5	11	15	18.5
	380/400V	4	5.5	7.5	11	15	18.5	22	30
	415V	4	5.5	9	11	15	22	25	37
	500V	5.5	7.5	10	15	18.5	22	30	37
	660/900V	5.5	7.5	10	15	18.5	30	33	37
Rated heat current(A)		20	20	32	40	50	60	80	80
Electrical life	AC3×10 4	100	100	100	100	80	80	60	60
Electrical life	AC4×10 4	20	20	20	20	20	15	15	15
Mechanical life×10 4		1000	1000	1000	1000	800	800	800	800
Number of the contacts		3P+NO					3P+NC+NO
Number of the contacts							3P+NC+NO

Yueqing Meba Eelectrics, Products major in Circuit breaker, Single pole RCBO, Metal Distribution Board, Air conditioner Contactor, Temperature controller and Terminal Block. All crafts are strict to according to international standard, as IEC60898, IEC947-2, IEC61008. Another continuous sum-up of clients' suggestion, improvement of technology in daily life, we always strive to reduce the cost, improve the quality, minimizing environment impact, make our customers more competitive.

Your 99.999% satisfaction is our pursuit. Welcome to Meba/Nonrac.
