Product Specifications
Product Description

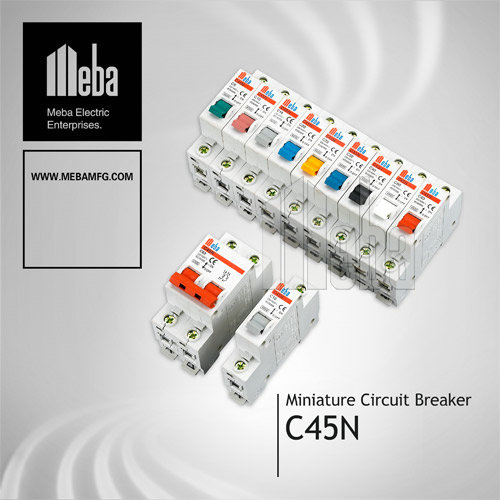

MEBA MCB Circuit Breaker (Isolating circuit breaker) DZ47(C45))
DZ47(C45N) series MCB circuit breaker(Isolating circuit breaker) is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898.
Technical Data:
Number of Poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P
Rated Current (A): 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, (50, 63)
Breaking Capacity (A): 6000, (4500)
Rated Voltage (V): 230/400
Rated Frequency: 50/60Hz
Endurance: 4000
Circumstance Temperature: -5+40
Electrical Life: No less than 6000 operations
Mechanical Life: (O-C) no less than 20000 operations
|
Type |
DZ47-63 MCB |
|
Number of poles |
1P,2P,3P,4P |
|
Rated Current(In) |
1,2,3,4,6,10,16,20,25,32,40,50,63A |
|
Rated Voltage(Un) |
AC230(240)/400(415)V |
|
Rated Frequency |
50(60)HZ |
|
Curve |
B,C,D |
|
Short-circuit breaker capacity(Cn) |
6000A |
|
Magnetic releases |
B curve: between 3and 5 In
C curve: between 5and 10In
D curve: between 10 and 14In |
|
Endurance |
>4000 |
|
Terminal protection |
IP20 |
Yueqing Meba Eelectrics, Products major in Circuit breaker, Single pole RCBO, Metal Distribution Board, Air conditioner Contactor, Temperature controller and Terminal Block. All crafts are strict to according to international standard, as IEC60898, IEC947-2, IEC61008. Another continuous sum-up of clients' suggestion, improvement of technology in daily life, we always strive to reduce the cost, improve the quality, minimizing environment impact, make our customers more competitive.
Your 99.999% satisfaction is our pursuit. Welcome to Meba/Nonrac.
