Product Specifications
| Prod Model: |
MB8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Circuit Breaker |
| Function: |
Overcurrent Protection |
| Arc-extinguishing Medium: |
Vacuum |
| Certification: |
CE |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Conventional Circuit Breaker |
| Breaking Capacity: |
DIN Rail |
| Installation: |
DIN Rail |
Product Description

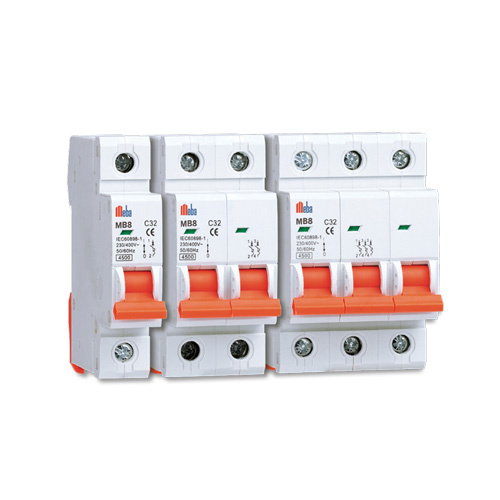

MEBA Miniature Circuit Breaker/Isolator switch ( MB8)
1, Applications:
MB8 circuit breaker the new type we developed, which is used in lighting distribution system or
Motor distribution system for protecting overload and short circuit in the system. The product is
Neoteric in structure light in weight, reliable and excellent in performance. Its frame and parts adopt plastics of high fire resistant and shockproof. The product overload and short circuit protection, as well as for unfrequently switching on&of electric equipment and lighting circuit in normal case. The products comply with IEC60898
2, Technical data
· Rated Current(In) 1, 2, 3, 4, 5, , 6, 10, 16, 20, 25, 32, 40, 50, 63A
· Rated Voltage(Un) 230VAC/400VAC
· Breaking capacity 4.5 /6kA
· Characteristic B, C, D
· Number of Poles 1P, 1P+N, 2P, 3P, 3P+N, 4P
· Type of Terminal Lug type
· Terminal Capacity cable up to 25mm2
· Width 18mm/module
· Standards IEC60898, EN 60898
· Certification CB, SEMKO
3 Dimensions(mm)
