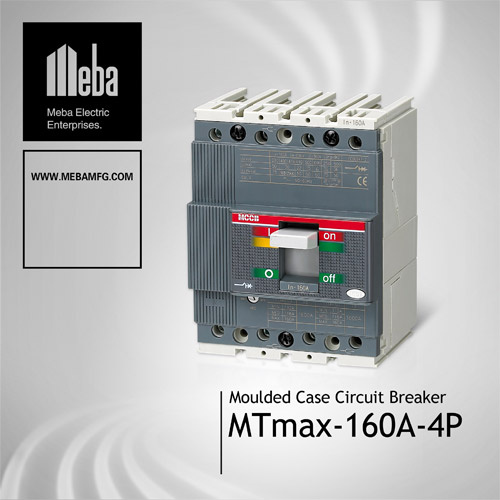

Meba Moulded Case Circuit Breaker (MCCB) Mtmax 160A 4p

Name: Meba Moulded Case Circuit Breaker (MCCB) Mtmax 160A 4p
Brand: china-manufacturer-directory.com
SKU: 690388015
Availability: InStock
Rating: 4.4 (92 reviews)

Price:	US $ 30.00/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	MTMAX 160A 4P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Circuit Breaker
Function:	Circuit-Breaker Failure Protection
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CE
Operation:	Electric Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker

Product Description

Meba Moulded Case Circuit Breaker (MCCB) Mtmax 160A 4p

Application:

MTMAX moulded case circuit breaker(MCCB/LLave de fuerza) is suitable for circuit AC 50Hz/60Hz, rated voltage up to AC 660V, Rated operating current to 800A.

It features normal structure, reliable performance, complete accessories & high breaking capacity, used for power distribution and protecting the circuit and electrical equipment against overload and short circuit. It complies with standard of IEC60947-2.

Specification

Type	Rated Current(A)	Number of Poles	Rated Insulation Voltage (V)	Rated Operating Voltage (V)	Ultimate Short Circuit Breaking Capacity(KA)			Servies Short Circuit Breaking Capacity (KA)		operation performance ( Endurance)		Overall Dimensions
					AC380v (400)	AC660v (690)	DC250	AC380v (400)	AC660v (690)	Load	Unload	L	W (3P/4P)	H
MTmax-125E	12.5,16, 20, 25,32,40, 50,63,80, 100,125	2P, 3P, 4P	660	380 660	15	-	-	7.5	-	3000	7000	120	76/101	70
MTMAX-125S					25	-	20	16	-
MTMAX-160S	16,20,32, 40,50,63, 80,100, 125,160				35	8	20	18	-	4000	6000	120	90/120	70
MTMAX-160H					50	10	40	25	-
MTMAX-250S	100,125, 160,180, 200,225, 250				35	10	40	18	-	2000	6000	170	105/140	103.5
MTMAX-250M					50	16	40	30	-
MTMAX-250H					65	18	40	48	-
MTMAX-400S	200,225, 250,315, 350,400				35	16	40	18	-	1000	4000	254	140/184	103.5
MTMAX-400M					50	20	40	30	-
MTMAX-400H					65	25	40	48	-
MTMAX-630S	400, 500, 630				50	20	40	30	-	1000	4000	268	210/280	103.5
MTMAX-630M					65	25	40	48	-
MTMAX-630H					80	30	40	60	-
MTMAX-800S	500, 630, 700,800				50	20	40	30	-	1000	4000	268	210/280	103.5
MTMAX-800M					65	25	40	48	-
MTMAX-800H					80	30	40	60	-

Yueqing Meba Eelectrics, Products major in Circuit breaker, Single pole RCBO, Metal Distribution Board, Air conditioner Contactor, Temperature controller and Terminal Block. All crafts are strict to according to international standard, as IEC60898, IEC947-2, IEC61008. Another continuous sum-up of clients' suggestion, improvement of technology in daily life, we always strive to reduce the cost, improve the quality, minimizing environment impact, make our customers more competitive.

Your 99.999% satisfaction is our pursuit. Welcome to Meba/Nonrac.
