Product Specifications
| Prod Model: |
MBBL6-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 2p, 4p: |
16, 20, 25, 32, 40, 50, 63A |
| 0.03, 0.1, 0.3A: |
30mA, 50mA, 100mA, 500mA |
| Type: |
Circuit Breaker |
| Function: |
RCCB |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CE |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Residual Current Circuit Breaker |
| Installation: |
DIN Rail |
Product Description

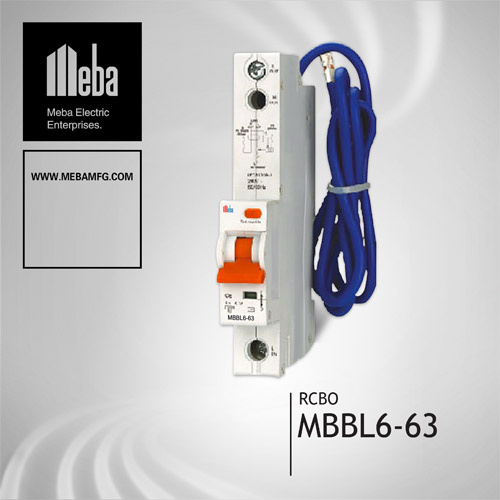

MEBA Residual current circuit breakers with overload protection /RCBOs are of new design, has following specifications:
Brand Name: MEBA
Model Number: MBBL6-63
Type: Residual Current Breaker With Overload Protection(RCBO)
Poles Number: 1P
Specification
MBBL6-63 RCBO, function as combination of circuit breaker and residual current device, which protect human from the fault of electric because of over-current, short circuit, earth fault current. MBBL6-63 is self-protecting up to a maximum short-circuit current 63A. All breaking capacities comply with Standard IEC/EN 61009.
Techincal Data:
1. Residual current device with overcurrent protection
2. Combine in residual current device function and MCB over-current protection function
3. Short circuit capacity: 10KA
4. Rated current(A): 6, 16, 20, 25, 32, 40, 50, 63A
5. Rated voltage: 230V AC
6. Rated frequency: 50Hz, 60Hz
7. Rated leakage operating current(mA): 30, 100, 300mA
8. AC and A types, B-C characteristic
9. Modular DIN Rail products 35mm
10. Tripping duration: Instantaneous0.1s
11. Electro-mechanical endurance: 4000 cycles
12. Connection terminal: Pillar terminal with clamp
13. Flexible conductor 10mm2
14. Rigid conductor 16mm2
15. Type: Electronic type
16. Pole No.: 1P+N
Yueqing Meba Eelectrics, Products major in Circuit breaker, Single pole RCBO, Metal Distribution Board, Air conditioner Contactor, Temperature controller and Terminal Block. All crafts are strict to according to international standard, as IEC60898, IEC947-2, IEC61008. Another continuous sum-up of clients' suggestion, improvement of technology in daily life, we always strive to reduce the cost, improve the quality, minimizing environment impact, make our customers more competitive.
Your 99.999% satisfaction is our pursuit. Welcome to Meba/Nonrac.
