Product Specifications
| Prod Model: |
MBB1-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 2p, 4p: |
16, 20, 25, 32, 40, 50, 63A |
| 0.03, 0.1, 0.3A: |
30mA, 50mA, 100mA, 500mA |
| Type: |
Circuit Breaker |
| Function: |
RCCB |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CE |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Residual Current Circuit Breaker |
| Installation: |
DIN Rail |
Product Description

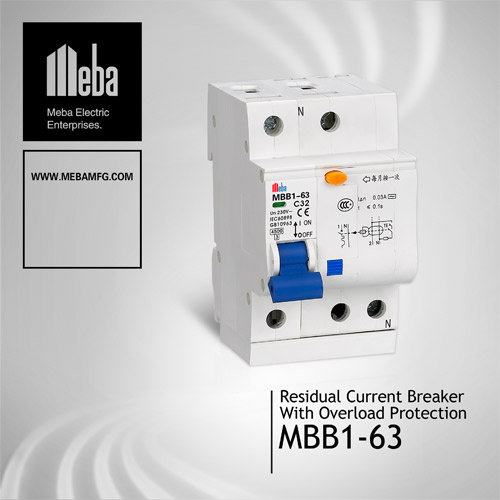

MEBA Residual Current Breaker With Overload Protection(RCCB)(MBB1-63) are of new design, has following specifications:
MBB1-63 RCBO is Electronic Type, used for AC 50Hz or 60Hz, single pole and two poles 230V; Three poles and four poles 400V, rated current is up to 40A. It can automatically and immediately cut off power supply once someone suffers from electric shock or leakage current above specified value. It can effectively protect personal security and avoid the damage to equipments. This RCBO can also function as overload and short-circuit protection and un-frequent changeover of line under normal condition.
It is suitable for industry, business, building and residence, etc.
The product is conformity with GB16917.1, IEC61009-1 standards.
Techincal Data
1. Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A.
2. Rated residual operating current: 0.01A, 0.03A.
3. Tripping characteristics: C.
4. Icn: 6000A
5. Rated residual current operated making and breaking capacity Im: 500A
6. Rated residual non-operated current: Ino: 0.5In
Yueqing Meba Eelectrics, Products major in Circuit breaker, Single pole RCBO, Metal Distribution Board, Air conditioner Contactor, Temperature controller and Terminal Block. All crafts are strict to according to international standard, as IEC60898, IEC947-2, IEC61008. Another continuous sum-up of clients' suggestion, improvement of technology in daily life, we always strive to reduce the cost, improve the quality, minimizing environment impact, make our customers more competitive.
Your 99.999% satisfaction is our pursuit. Welcome to Meba/Nonrac.
