Product Specifications
| Prod Model: |
DZ30L-32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 2p, 4p: |
16, 20, 25, 32, 40, 50, 63A |
| 0.03, 0.1, 0.3A: |
30mA, 50mA, 100mA, 500mA |
| Type: |
Circuit Breaker |
| Function: |
RCCB |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CE |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Residual Current Circuit Breaker |
| Installation: |
DIN Rail |
Product Description

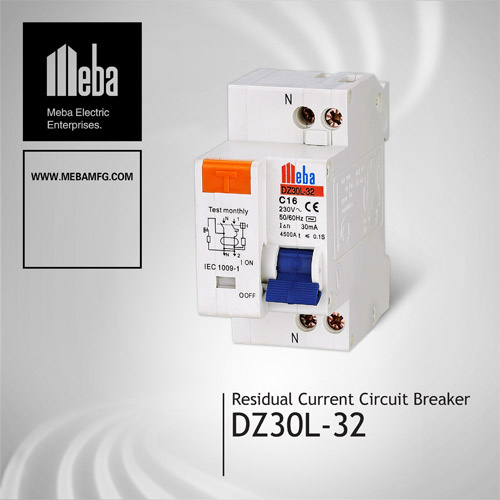

MEBA Residual Current Circuit Breaker (RCCB DZ30L-32) are of new design, has following specifications:
Brand Name: Meba
Model Number: DZ30L-32
Type: Residual current circuit breaker with overload protection(RCBO)
Poles Number: DPN
Specification
DZ30L-32(DPN), combination by mini circuit breaker and leakage. Which protect human from the fault of electric because of over-current, short circuit, earth fault current. It is self-protecting up to a maximum short-circuit current 63A. All breaking capacities comply with Standard IEC/EN 61009.
Techincal Data
1. Residual current device with overcurrent protection
2. Combine in residual current device function and MCB over-current protection function
3. Short circuit capacity: 3KA
4. Rated current(A): 6, 16, 20, 25, 32A
5. Rated leakage operating current(mA): 30, 100, 300mA
6. AC types, B-C characteristic
7. Modular DIN Rail products 35mm.
Yueqing Meba Eelectrics, Products major in Circuit breaker, Single pole RCBO, Metal Distribution Board, Air conditioner Contactor, Temperature controller and Terminal Block. All crafts are strict to according to international standard, as IEC60898, IEC947-2, IEC61008. Another continuous sum-up of clients' suggestion, improvement of technology in daily life, we always strive to reduce the cost, improve the quality, minimizing environment impact, make our customers more competitive.
Your 99.999% satisfaction is our pursuit. Welcome to Meba/Nonrac.
