Product Specifications
| Automation: |
Automatic |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
Pipe and Tube Bending Machine |
Product Description

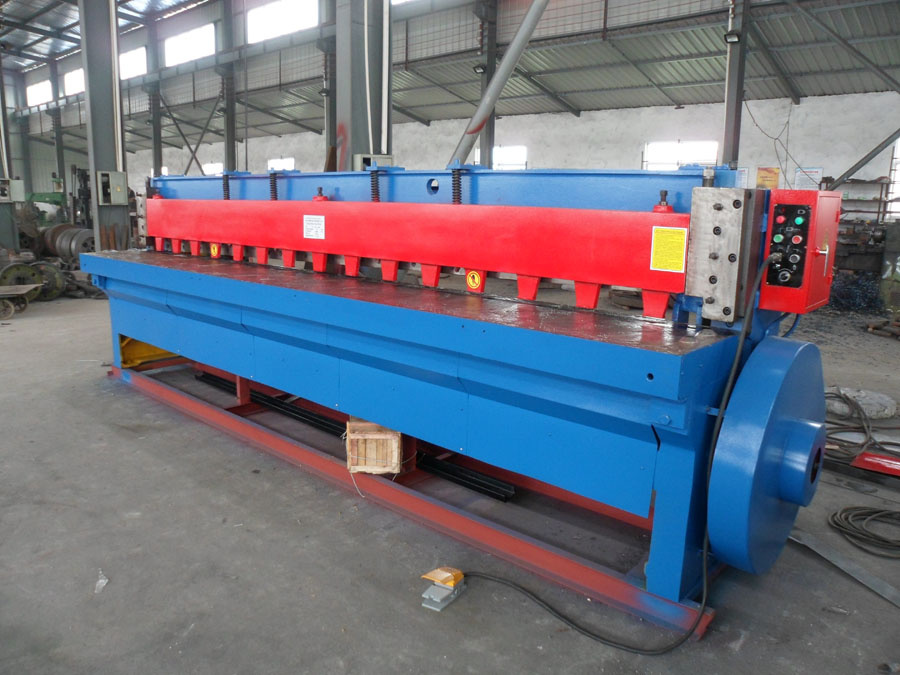

Performance features for mechanic shearing machine:
1. Tungsten Steel Edged Guillotine Shear Blades which give a long cutting life
2. Extra long guides for the cutting beam
3. Extra long side gauges or squaring cuts, these can be fitted in a number of positions on the table and thus save undue wear at any one point of the shear blades.
4. Front gauge with extension brackets and back gauge, which is fitted with movable gauging points of hardened steel
5. Guards enclose the Flywheel, the Vee belts, the gears and the primary drive shaft
|
Model |
Shearing thickness
mm |
Max Width
mm |
Shearing Angle |
Stroke Times |
Back gauge
mm |
Poder
kw |
Dimension
mm |
|
Q11-2×1000 |
2 |
1000 |
1°30' |
75 |
350 |
1.5 |
1580×1450×1080 |
|
Q11-2×1300 |
2 |
1300 |
1°30' |
75 |
350 |
1.5 |
1580×1450×1100 |
|
Q11-3×1200 |
3 |
1200 |
2°25' |
55 |
350 |
2.2 |
1980×1500×1300 |
|
Q11-3×1300 |
3 |
1300 |
2°14' |
55 |
350 |
3 |
2080×1550×1300 |
|
Q11-3×1500 |
3 |
1500 |
2° |
55 |
350 |
3 |
2280×1500×1300 |
|
Q11-4×2000 |
4 |
2000 |
1°30' |
25 |
500 |
5.5 |
3050×1900×1350 |
|
Q11-4×2500 |
4 |
2500 |
1°30' |
25 |
500 |
5.5 |
3580×1900×1350 |
|
Q11-4×3200 |
4 |
3200 |
1°14' |
20 |
500 |
7.5 |
4200×1960×1350 |
|
Q11-6.3×2000 |
6.3 |
2000 |
2° |
40 |
500 |
5.5 |
3160×1760×1530 |
|
Q11-6×2500 |
6 |
2500 |
1°45' |
40 |
500 |
7.5 |
3660×1760×1530 |
|
Q11-8×2500 |
8 |
2500 |
1°57' |
45 |
500 |
11 |
3680×2160×1550 |
|
Q11-13×2500 |
13 |
2500 |
3° |
30 |
600 |
15 |
3580×2300×2500 |
|
Q11-16×2500 |
16 |
2500 |
3° |
30 |
700 |
18.5 |
3680×2600×2500 |
|
Q11-20×2500 |
20 |
2500 |
3° |
25 |
700 |
30 |
3850×2800×2800 |
Bronx Machinery designs and builds high quality cut to length line, slitting line, shearer, press brake, uncoilers, straighteners, and coil processing industries. When it comes to coil processing equipment, Bronx's name and reputation are synonymous with speed, safety and quality.
This overview of our complete line of feeders, straighteners, reels and ancillary equipment that can be supplied as an integrated coil system or as stand-alone systems designed to meet your coil processing needs. You can also check product availability and pricing for each piece of equipment.
At Bronx, coil systems are built to the highest industrial standards to ensure long-lasting durability and operating efficiency. Each system may be purchased individually as a stock item or combined into a complete coil processing line. Our design engineers will work to match our technology with your production needs to achieve a more efficient, more profitable operation.
