Jiangsu Bronx Machinery Co., Ltd. >> Mechanic Shearing Machine 4

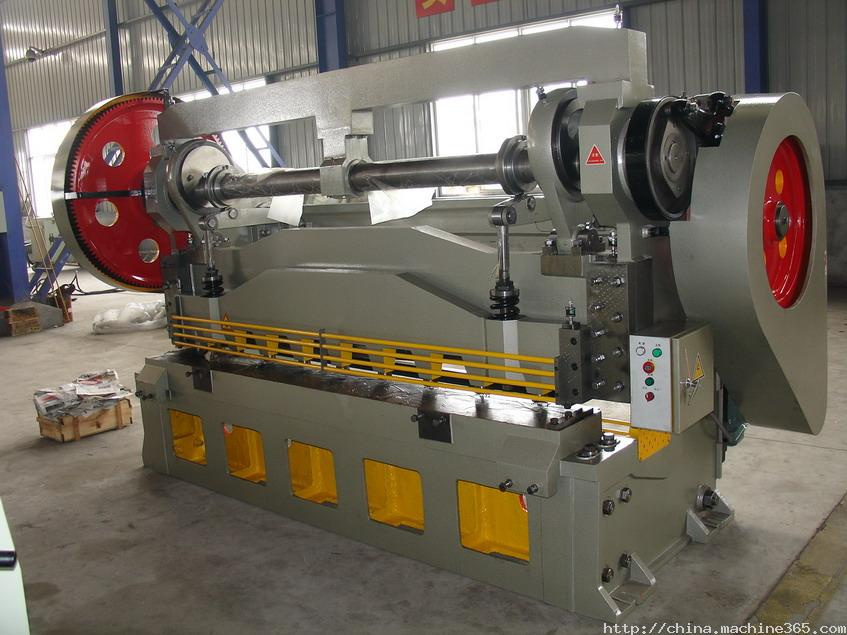

Mechanic Shearing Machine 4

Name: Mechanic Shearing Machine 4
Brand: china-manufacturer-directory.com
SKU: 619286894
Availability: InStock
Rating: 4.9 (100 reviews)

Supplier:	Jiangsu Bronx Machinery Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1 /Piece
Quantity::

Product Specifications

Automation:	Automatic
Type For Cutting Machine:	CNC Cutting Machine
Type For Fold-bending Machine:	CNC Fold-bend Machine
Application:	Machinery & Hardware
Type:	Pipe and Tube Bending Machine

Product Description

Performance features for mechanic shearing machine:

1. Tungsten Steel Edged Guillotine Shear Blades which give a long cutting life
2. Extra long guides for the cutting beam
3. Extra long side gauges or squaring cuts, these can be fitted in a number of positions on the table and thus save undue wear at any one point of the shear blades.
4. Front gauge with extension brackets and back gauge, which is fitted with movable gauging points of hardened steel
5. Guards enclose the Flywheel, the Vee belts, the gears and the primary drive shaft

Model	Shearing thickness mm	Max Width mm	Shearing Angle	Stroke Times	Back gauge mm	Poder kw	Dimension mm
Q11-2×1000	2	1000	1°30'	75	350	1.5	1580×1450×1080
Q11-2×1300	2	1300	1°30'	75	350	1.5	1580×1450×1100
Q11-3×1200	3	1200	2°25'	55	350	2.2	1980×1500×1300
Q11-3×1300	3	1300	2°14'	55	350	3	2080×1550×1300
Q11-3×1500	3	1500	2°	55	350	3	2280×1500×1300
Q11-4×2000	4	2000	1°30'	25	500	5.5	3050×1900×1350
Q11-4×2500	4	2500	1°30'	25	500	5.5	3580×1900×1350
Q11-4×3200	4	3200	1°14'	20	500	7.5	4200×1960×1350
Q11-6.3×2000	6.3	2000	2°	40	500	5.5	3160×1760×1530
Q11-6×2500	6	2500	1°45'	40	500	7.5	3660×1760×1530
Q11-8×2500	8	2500	1°57'	45	500	11	3680×2160×1550
Q11-13×2500	13	2500	3°	30	600	15	3580×2300×2500
Q11-16×2500	16	2500	3°	30	700	18.5	3680×2600×2500
Q11-20×2500	20	2500	3°	25	700	30	3850×2800×2800

Bronx Machinery designs and builds high quality cut to length line, slitting line, shearer, press brake, uncoilers, straighteners, and coil processing industries. When it comes to coil processing equipment, Bronx's name and reputation are synonymous with speed, safety and quality.

This overview of our complete line of feeders, straighteners, reels and ancillary equipment that can be supplied as an integrated coil system or as stand-alone systems designed to meet your coil processing needs. You can also check product availability and pricing for each piece of equipment.
At Bronx, coil systems are built to the highest industrial standards to ensure long-lasting durability and operating efficiency. Each system may be purchased individually as a stock item or combined into a complete coil processing line. Our design engineers will work to match our technology with your production needs to achieve a more efficient, more profitable operation.
