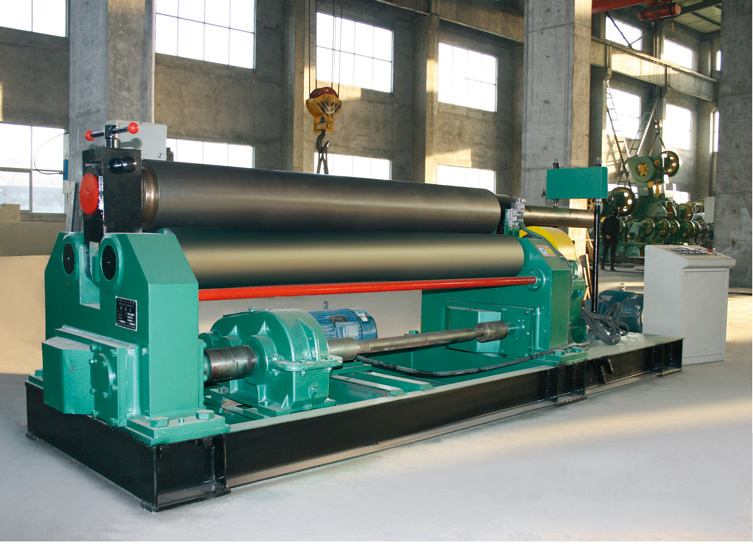

Mechanical 3-Roller Symmetrical Plate Rolling Machine 1

Name: Mechanical 3-Roller Symmetrical Plate Rolling Machine 1
Brand: China-Manufacturer-Directory.com
SKU: 619286144
Availability: InStock
Rating: 4.6 (138 reviews)

Supplier:	Jiangsu Bronx Machinery Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1 /Piece
Quantity::

Product Specifications

Automation:	Automatic
Type For Cutting Machine:	CNC Cutting Machine
Type For Fold-bending Machine:	CNC Fold-bend Machine
Application:	Machinery & Hardware
Type:	Pipe and Tube Bending Machine

Product Description

This machine structure pattern three roller symmetrical type, have roller act as vertical sport of going up and down in two roller central symmetrical position, but acquisition through the mother's worm transmission of pole silk of silk, the roller two times does rotatory sports, through moderate output gear wheel of plane and lay roller gear wheel clench the teeth, make for roll panel offer torsion.

Three rollers
1. Mechanical drive
2. Symmetry bending, easy to be operated.

N.	Model	Bending Thiskness mm	Bending width mm	Yield Limited (Mpa)	Bending Speed (m/min)	Min. Bending Diameter mm	Up roller (mm)	Low roller (mm)	Cen. Distance mm	Main Motor (Kw)
1	W11-4*1500	4	1500	245	5	300	150	140	185	3
2	W11-6*1500	6	1500	245	5	380	160	140	220	4
3	W11-6*2000	6	2000	245	4.5	380	170	160	260	5.5
4	W11-6*3200	6	3200	245	4.5	380	220	180	280	7.5
5	W11-8*2000	8	2000	245	4.5	400	185	170	260	5.5
6	W11-8*2500	8	2500	245	4.5	550	240	200	300	11
7	W11-12*2000	12	2000	245	4.5	550	240	200	300	11
8	W11-12*2500	12	2500	245	4.5	600	260	220	320	11
9	W11-12*3000	12	3000	245	4	700	280	240	360	15
10	W11-16*2000	16	2000	245	4	600	260	220	320	11
11	W11-16*2500	16	2500	245	4	700	280	250	360	15
12	W11-16*3200	16	3200	245	4	650	340	260	430	18.5
13	W11-20*2000	20	2000	245	4	700	280	250	360	15
14	W11-20*2500	20	2500	245	4	850	340	280	430	18.5
15	W11-25*2000	25	2000	245	4	850	340	280	430	18.5
16	W11-25*2500	25	2500	245	4	900	360	300	480	22
17	W11-30*2500	30	2500	245	4	1200	420	360	550	30
18	W11-30*3000	30	3000	245	4	1200	450	390	600	37

Bronx Machinery designs and builds high quality cut to length line, slitting line, shearer, press brake, uncoilers, straighteners, and coil processing industries. When it comes to coil processing equipment, Bronx's name and reputation are synonymous with speed, safety and quality.

This overview of our complete line of feeders, straighteners, reels and ancillary equipment that can be supplied as an integrated coil system or as stand-alone systems designed to meet your coil processing needs. You can also check product availability and pricing for each piece of equipment.
At Bronx, coil systems are built to the highest industrial standards to ensure long-lasting durability and operating efficiency. Each system may be purchased individually as a stock item or combined into a complete coil processing line. Our design engineers will work to match our technology with your production needs to achieve a more efficient, more profitable operation.
