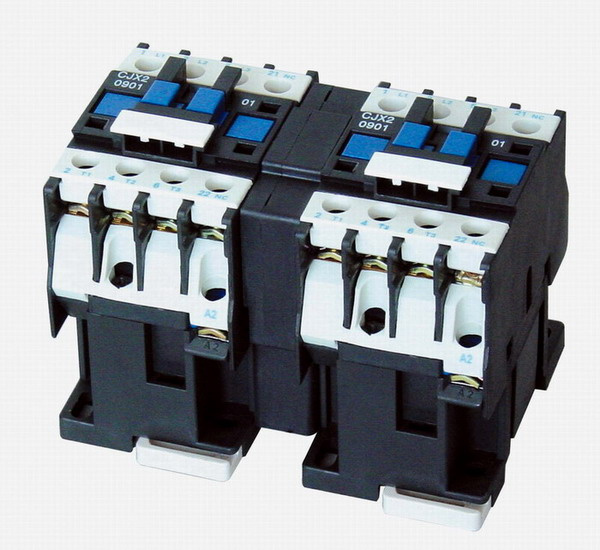

Mechanical Interlocking AC Contactor (CJX2-N series)
Product Specifications
| Prod Model: |
CJX2-N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Automatic Control |
| Certification: |
CE |
| Structure: |
Combination |
| Signal: |
Continuous |
Product Description
APPLICATION
CJX2-N series AC contaotor(simplified as eontacto in the following) is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current 95A, for making and breaking and frequent starting, controlling the AC motor. Combined with the auxiliary contact group, air delayer, machine interlocking device etc, it is combined into the delay contactor, mechanical interlocking contactor, dtar-delta starter, with the thermal relay, it is combined into the electromagnetic starter.
|
Type |
Rated current
AC-3(A) |
Controlled power (KW) |
|
220V |
380V |
415V |
440V |
660V |
|
CJX2-09N |
9 |
2.2 |
4 |
4 |
4 |
5.5 |
|
CJX2-12N |
12 |
5.5 |
5.5 |
5.5 |
5.5 |
7.5 |
|
CJX2-18N |
18 |
7.5 |
7.5 |
9 |
9 |
10 |
|
CJX2-25N |
25 |
5.5 |
11 |
11 |
11 |
15 |
|
CJX2-32N |
32 |
7.5 |
15 |
15 |
15 |
18.5 |
|
CJX2-40N |
40 |
18.5 |
18.5 |
22 |
22 |
30 |
|
CJX2-50N |
50 |
15 |
22 |
25 |
30 |
33 |
|
CJX2-65N |
63 |
18.5 |
30 |
37 |
37 |
37 |
|
CJX2-80N |
80 |
22 |
37 |
45 |
45 |
45 |
|
CJX2-95N |
95 |
22 |
45 |
45 |
45 |
41 |
|
CJX2-115N |
115 |
30 |
55 |
59 |
59 |
80 |
|
CJX2-150N |
150 |
40 |
75 |
80 |
80 |
100 |
|
CJX2-170N |
170 |
55 |
90 |
100 |
100 |
110 |
|
CJX2-205N |
205 |
63 |
110 |
110 |
110 |
129 |
|
CJX2-245N |
245 |
75 |
132 |
132 |
132 |
160 |
|
CJX2-300N |
300 |
100 |
160 |
200 |
200 |
220 |
|
CJX2-410N |
410 |
110 |
220 |
250 |
250 |
280 |
|
CJX2-475N |
475 |
147 |
265 |
280 |
280 |
355 |
|
CJX2-620N |
620 |
200 |
335 |
400 |
400 |
450 |
