Product Specifications
| Prod Model: |
VMS-4030E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mechanical Measuring Instrument: |
for 2d CNC Measure and Inspection |
| Color: |
Blue and Orange |
| Material: |
Steel, Granite |
| Measuring Range: |
300x200x150mm |
| Accuracy: |
3+L/200um |
| Resolution: |
0.0005mm |
| Warranty: |
12 Months |
| Factory Location: |
Dongguan |
| Certification: |
ISO9001, CE |
| Type: |
Universal Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
Product Description
No Difficult Products to Test in the World!

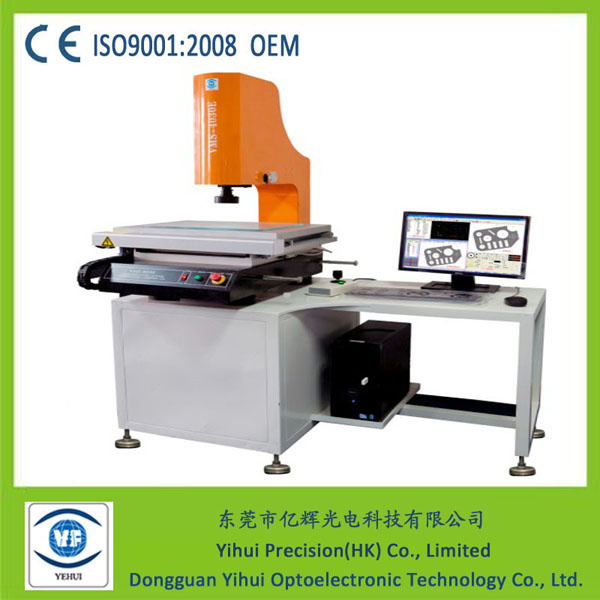

Mechanical measuring instrument (VMS-4030E)
Usage:
*To measure two coordinates areas;
*Automatic measurement & suitable for batch inspect;
*To used in precision finishing industries, such as: Machinery, electronics, ironware, instrument, plastics and so on.
Function:
1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.
2. It has many features, such as combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.
3. It is coupled with our company's self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.
4. Coordinate translation and coordinates straighten out is to make measurement more convenient and efficient and improve measurement for same workpiece.
5. Measurement data directly input into AutoCAD and become a full work circle; The data also can be entered in Excel and Word to conduct statistical analysis.
We also produce: Video Measuring Machine (VMS), CMM etc.
Welcome to visit our factory! ! !
|
Model |
VMS-2515E |
VMS-3020E |
VMS-4030E |
VMS-5030E |
|
Table |
The metal's table size(mm) |
450 x 280 |
500x330 |
606x466 |
706x466 |
|
The glass's table size(mm) |
306x196 |
350x280 |
450x350 |
550x350 |
|
Measuring range(mm) |
250x150 |
300x200 |
400x300 |
500x300 |
|
Weight(Kg) |
220 |
270 |
320 |
420 |
|
Dimensions(L*W*H)(mm) |
670x660x950 |
720x950x900 |
760x950x900 |
720x950x1020 |
|
Measuring accuracy |
3+L/200um
(L be regarded as measuring the length unit :mm) |
|
Resolution |
0.0005mm |
|
Measuring Targeting System(Standard Accessories) |
Camera: original TEO 1 / 2''Color CCD
Zoom lens: original U.S. NAVITAR lens
Professional automatic 2D measurement software |
|
Zoom lens magnification: 0.7 ~ 4.5X WD:92mm |
|
Video Total Magnification: 30 ~ 190X Object view:7~1.1mm |
|
Full mouse / joystick operate Z-axis travel (mm):150mm |
Lighting: Surface light and transmission light are used LED,brightness adjustable
Power:220V(AC),50Hz,30W |
Dongguan Yihui Optoelectronics Technology Co., Ltd. was established in 2003, which is a high-tech enterprise with the precision measuring equipment R&D, prodution and sales. Our main products are: Video measuring machine, optical projectors, CMM, tool microscope etc. It is widely used in electronics, plastics, mold, machinery, hardware, clocks and connectors, mobile and other industries.
At present, our company have passed ISO9001 and CE Certificate. What's more, we has more than 30 design patents, and got the sofware copyright registration certificate awarded by the state intellectual property office.
"Customer oriented, quality first, standardized management, continuous transformation" is our company's operating philosophy. Base on leading technology, excellent quality and scientific management makes our company recognized by our customers.
Our Target: No Difficult Products To Test In The World!
