Product Specifications
| Prod Model: |
KJ009 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Universal Counter |
| Function: |
Subtract Counter |
Product Description
Specification:
Rated Voltage
220V/110V
Frequency
50 Hz or 60Hz
Current
10A/20A
Operating Temperature Range
-10 ~ +55
Setting Direction
Clockwise
Operating Torque
< 0.5N. M
Insulation Resistance
> 100MΩ
Withstand Voltage
1500V ~ /min
Time Setting Range
180min± 15%.
Fully Pass Range
0 ~ 45Counter Clockwise
Longevity
Above 10000 times

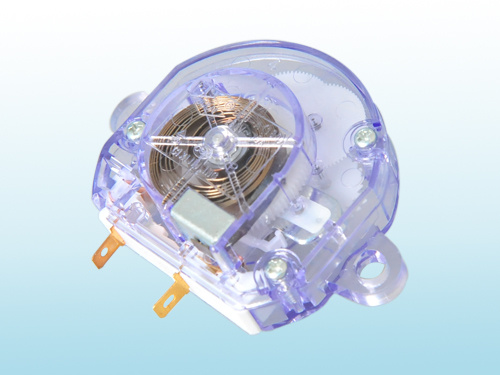

Application: Mechanical component timer is key of electric fan. It can limit the operating time of fan within certain selection. When settled time is up. The power will be off automatically and operating stopped. Mainly used for timing of Fanner, Heater (Fireplace), and other home appliances.
Contour diagram:
FEATURE:
DFJ-A mechanical timer is designed as plastic and steel structure. It has the advantages of novel structure. Exact time-operating and convenient used and in staling.
Main Technique Data:
Time limitation 180± 27min
Insulation resistance: Not less than 100M
No break down and scintillation will be taken place while testing under 1500V. 50HZ for 1 min
Natural service life: More than 10000 times.
Measure: 76mm*60mm*50mm (refer to Overall Dimensions)
Weight: Less than 50g
Remarks
1, Colour & length of conducting wire can be made according to the requirement of users2, The output shaft can be made according to the consumers need3, Working voltages and frequencies can be made as per users' requirements
