Product Specifications
| Prod Model: |
DD282 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current(a): |
3X1.5(6),3X5(20),3X10(40),3X15(60),3X20(80) |
| Rated Voltage(V): |
3X220/380 |
| Rated Frequency(Hz): |
50 or 60 |
| Accuracy Class: |
Class 1 or Class 2 |
| Weight(Kg): |
0.5 |
| Voluum: |
270X170X157 |
| Colour: |
Gray |
| Type: |
Power Meter |
| Display: |
Digital |
| Electric Equipment: |
Three-phase Four-wire |
| Theory: |
Electronic Meter |
| Installation: |
Indirect Connected |
| Usage: |
Multi-Functional Energy Meter |
| Measured Signal: |
Pulse Peak |
| Power Meter Connection: |
Terminal |
Product Description

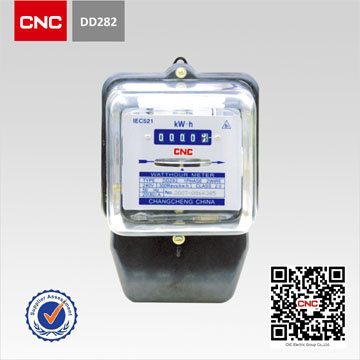

Mechenical Kilo Single-phase Active Watt Hour Meter (DD282)
Key Words: Kwh, Meter, Mechenical Kilo Watt Hour Meter, Kwh Meters, Mechenical Meter, Energy Meter, Machine meter, single phase meter, active meter, kwh meter
General:
DD282single-phase watt-hour meter is a kind of induction meter, which is applicable to measure the rated frequency 50Hz and power loss in electrified wire netting. All technical targets are completely conformed to National Standard GB/T15283-94 and International
Structrure and Feature:
The meter has separated electromagnet and the bearing has four kinds; Single-jewel, dual jewel, magnetic thrust and magnetic floating. The case has three kinds; Aluminum, plastic and glass. The die-casting frame is alloy aluminum with excellent mechanical strength.
Specification:
Type: DD282
Accuracy: 2
Rated voltage: 220~240V
Rated current: 1.5(6), 2.5(10), 3(12), 5(20), 5(30), 10(40), 15(60), 20(80), 30(100)A
Overload Capacity: 4~6lb
Startding current: 0.5%lb
Insulation performance: AC Volation 2kV 50V 1 min impulse voltage 6kV
