Product Specifications
| Prod Model: |
MED-L-MCL-5250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Reagent: |
Diluent, Sheath, Detergent,Lyse |
| Aperture Diameter: |
Wbc 100um,Rbc/Plt 68um |
| Throughput: |
Whole Blood : up to 60 Samples Per Hour |
| Data Storage: |
up to 200,000 Sample Results with Grams |
| Alarms: |
Error Messages |
| Display: |
PC Display (17 Inch Color TFT) |
| Dimension: |
598.5mm(L)*585.5mm(W)*488.5mm(H) |
| Power: |
220V,50/60Hz 600va |
| Weigh: |
70kg |
| Type: |
Hematology Analyzer |
Product Description

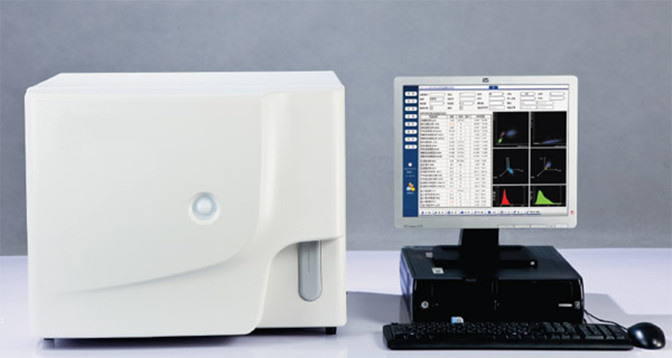

5-Part-Diff Auto Hematology Analyzer
Model: MCL-5250
Specifications
28 parameters
WBC,LYM%,MON%,NEU%,EOS%,BASO%,LYM#,MON#,NEU#,EOS#,BAS#,RBC,HGB,
HCT,MCV,MCH,MCHC,RDW_CV,RDW_SD,PLT,MPV,PDW,PCT,P_LCR,P_LCC,
RETIC_ABS,RETIC, IRF
2 Histograms for RBC and PLT
2 Scatter grams: 5-part differential scatter gram
Eosinophils and Moutrophils scatter gram
2 3-D stereograms
Principles of operation
WBC/DIFF: Flow Cytometry, Laser light multi-dimensional cell classification
WBC Analysis: Optical and impedance measurements
RBC/PLT Analysis: Impedance method
HGB test: Cyanide-free reagent colorimetry
Reagent: Diluent, Sheath, Detergent,Lyse
Sampling modes: Whole blood : 20μL. Pre-diluent : 20Μl
Aperture Diameter: WBC 100μm,RBC/PLT 68μm
Throughput: Whole blood : up to 60 samples per hour. Pre-diluent : up to 60 samples per hour
Data storage: Up to 200,000 sample results with grams
Alarms: Error messages
Display: PC display (17 inch color TFT)
Dimension: 598.5MM(L)×585.5MM(W)×488.5MM(H)
Power: 220V,50/60Hz 600VA
Weigh: 70kg
Laser light multi-dimensional cell classification
Resistant RBC mode
WIC and WOC for WBC counting
Up to 60 samples per hour throughput
WBC 5 part diff with sheath reagent only
Support both whole blood and capillary blood samples
Four reagents for 25 parameters
Semi-conductor laser
MCL-5250 Auto Hematology Analyzer uses semi-conductor laser for the flow cytometry system. Through calculations of different angles via laser scatters, the instrument provides complete analysis including cell size, granularity and complexity.
One channel give complete
differentiate WBC.
MCL-5250 counts lymphocyte, monocyte, neutrophil, eosinophil and basophil in WOC channel.
3D sterograms
Not only scatter grams but also 3D stereograms are provided by MCL-5250 that the WBC
differentiation would be presented on different views.
