Med-PT-Xy-Srf-I Hot Wet Compress Device

Product Specifications

Prod Model:	Med-PT-XY-SRF-I
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	220V
Work Frequency:	50Hz
Rated Input Power:	1500W
Volume Of Water Tank:	70L
Weight Of Hydrocollator Heating Device:	110kg
Power Supply:	a.C220V±10%; 50Hz±2%
Work Mode:	Automatic Mode; Manual Mode
Certification:	ISO13485

Product Description

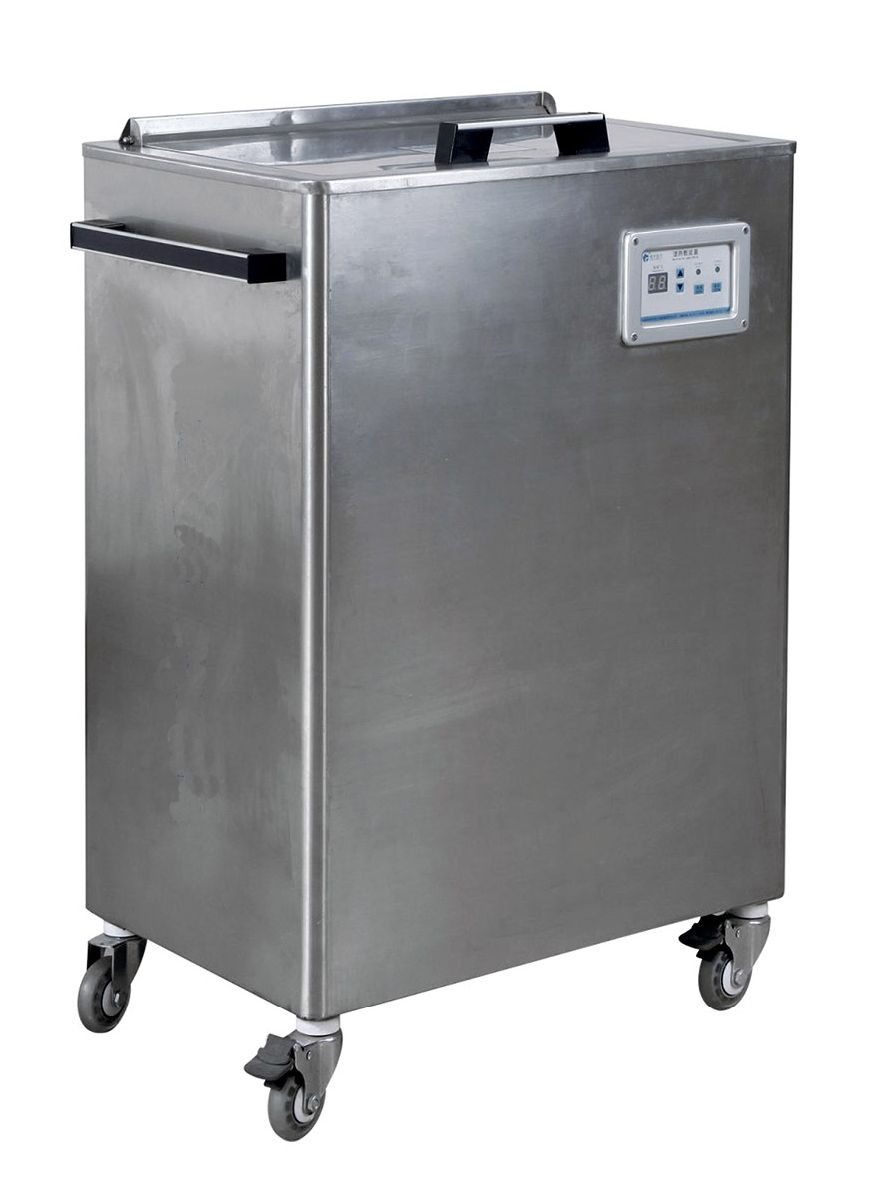

Hot Wet Compress Device

Med-PT-XY-SRF-I

Overview:
1. Product structure and components: Host and hot wet compress bag.
2. Product application range: Treatment in advance of physical therapy and manual therapy for soft tissue sprain and injury recovery, limb fibrous tissue inflammation, periarthritis of shoulder, chronic arthritis, joint fiber stiffness, sciatica etc.

Working principle:
Hot wet compress device heats up hot wet compress bag containing natural minerals by putting it into water. This device acts the heat and steam radiating from the hot wet compress bag having been immersed in hot water on the treatment site to effectively relieve chronic pains by moisturizing and deep heat treatment.
Dampness-heat can cause partial vessels to expand, and increase blood flow volume, enhance supersession, improve nutrition, promote the absorption of effusion by increasing capillary permeability, eliminate partial swelling, decrease the excitability of sensation nerves, increase the patient's threshold of pain and release pains, and it can also release muscle spasms, soften cicatrix.

Technological parameters:
1. Rated voltage: 220V.
2. Work frequency: 50Hz.
3. Rated input power: 1500W.
4. Volume of water tank: 70L.
5. Weight of hydrocollator heating device( with hot packs): 110Kg.
6. Temperature range: 0~99°C, adjustable.
7. Stop heating temp range: 98°C-100°C.
8. Heating time: it needs 180 min to heat up from 25°C to 70°C.
9. Cooling time: it needs 180 min to cool down from 70°Cto 25°C.
10. Related size of hydrocollator heating device
    External dimensions of constant temp chest: 41cm (W) ×65cm (L) ×89cm (H) ±3cm
    Dimensions of inner box of the constant temp chest: 31cm (W) ×51cm (L) ×45cm (H) ±3cm.
11. Normal working conditions
    Environment temp: -18°C~60°C.
    Relative humidity: 10%~100%
    Atmospheric pressure: 50kpa~160kpa
    Power supply: a.c220V±10%; 50Hz±2%


Indications:
Treatment in advance of physical therapy and manual therapy for soft tissue sprain and injury recovery, limb fibrous tissue inflammation, periarthritis of shoulder, chronic arthritis, joint fiber stiffness, sciatica etc.

Characteristics of the device:
Constant temperature control; you can choose an ideal clinical temperature between room temperature and 99ºC for the most effective treatment effect.
Safety device: double over-temperature protection and lower water level alarm to stop heating, avoid dry burning.
It saves electricity and avoids loss of heat by using fiberglass insulation.
Its high quality stainless steel not only makes it easy to use and maintain, but helps to keep the bag temperature constant.
You can easily operate on the control panel by a gentle click. The real time temperature can be displayed.
With rubber trundle, it is durable and firm, and makes no noise when moved and runs steadily on ground.
Work mode: automatic mode; manual mode.
Automatic mode: with intelligent design, it can start in advance before work and auto power-off.
Manual mode: you can set by yourself.

Hot packs of PT-SF-I
Item	Length and width(error ±10%)	Quantity
Standard hot packs	300mm×250mm	10 pcs
Oversize hot pack	610mm×250mm	1 pc
Neck and shoulder hot pack	570mm×170mm	1 pc
Hand hot pack	320mm×170mm	1 pc
