Product Specifications
| Prod Model: |
APT-1124WS36/56OC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Media converter, ethernet media converter, 10/100M media converter

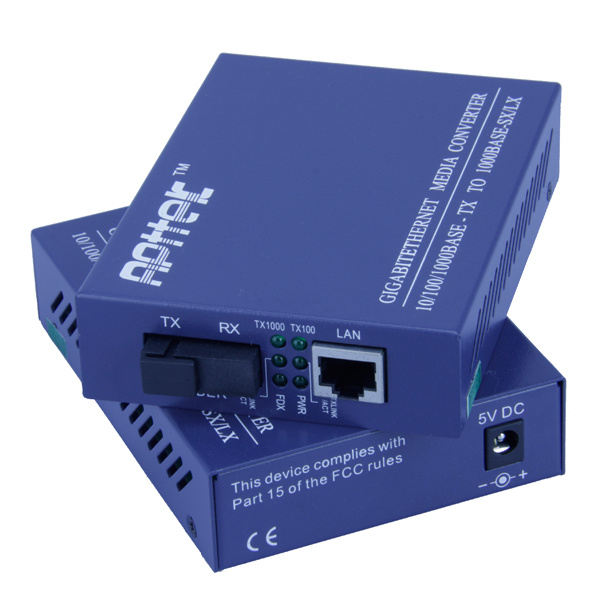

APT-1124WS36/56OC Media converter is 10/100/1000M Self-adapt CWDM single-fiber, single-mode 60KM ethernet fiber optic media converter, the media converters are used in telecommunication networks, FTTH and other FTTX solutions. Fiber optics transmission technology breaks the cooper network limit of 100m and gets Ethernet connected to long distance.
Life time of our Gigabit media converters is longer than five years without any failure, and more than three warranty is our guarantee of our media converters.
14 slots or 16 slots rack mount chassises can support card type of APT-1124WS36/56OC media converters and easy to be installed and maintained.
Price for this gigabit media converters is very competitive and we have discount policy if you need a large number of them in your project or business.
Features:
According to IEEE802.3, IEEE802.3u, 10/100Bast-TX, 100Base-FX standard.
Support IEEE802.3X flow control function.
Ethernet port support 10/100M, full-duplex and semiduplex auto-negotiation.
Ethernet port Auto-MDI/MDIX auto flip, parallel/across twisted-pair auto-negotiation.
Support storage transmission and direct transmission.
Ultra-low time-delay data transmission, completely transparent to the network protocol.
Built-in 288KB RAM data buffer, suport 2046Bytes long data packet.
50/125um or 62.5/125um multimode fiber link transmission distance up to 550meter and 2KM.
9/125um singlemode fiber link transmission distance up to 120KM.
Modulization configuration design, chassis support power supply for cassette media converter.
Support hot-swappable, plug and play.
6LED indicators, dynamic feedback link connection state and fault detection.
Built-in lightning protection circuit, significantly reduce the damage caused by thunderbolt induction.
Average working time more than 100, 000hours without failures
|
Item |
Specification/Term |
|
1 |
Item number |
APT-1124WS36/56OC |
|
2 |
Standard |
IEEE802.3u,10/100/1000Base-T,1000Base-SX/LX,IEEE802.3ah, IEEE802.3z/ab |
|
3 |
Flow control |
IEEE8.2.3x port flow control and backpressure control |
|
4 |
Transmission speed |
10M/100/1000M auto-negotication |
|
5 |
Transmission mode |
Full-duplex/semiduplex(auto-negotiation) |
|
6 |
Conversion mode |
Storage transmission |
|
7 |
MAC address |
VLAN 4K |
|
8 |
Buffer space |
128KB |
|
9 |
Packet length |
Storage transmission:9728Bytes,straight-through,infinite. |
|
10 |
Time-delay |
9.6us |
|
11 |
Bit error rate |
<1/1000000000 |
|
12 |
MTBF |
100,000 hours |
|
13 |
Power supply |
AC100~265V 50/60Hz / DC5V 1A |
|
14 |
Power dissipation |
<2.5W |
|
15 |
Interface |
Eletric port:RJ45,Fiber port:SC |
|
16 |
Twisted-pair |
Cat.5,Cat.6 |
|
17 |
Multimode fiber |
50/125,62.5/125um |
|
18 |
Singlemode fiber |
8/125,8.3/125,9/125um |
|
19 |
Wavelengh |
1490nm/1550nm |
|
20 |
Transmit distance |
|
|
|
1)single fiber singlemode |
60Km |
|
|
2)Cat.5 twisted-pair |
100m |
|
21 |
Operating temperature |
0~50 Celsius Degree |
|
22 |
Storage temperature |
-20~70 Celsius Degree |
|
23 |
Humidity |
5%~90% (no condensation) |
|
24 |
Size |
118 * 87 * 28mm(L*W*H)External power supply |
