Product Specifications
| Prod Model: |
30x50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Steel Rolling Equipment |
| Certification: |
ISO |
Product Description

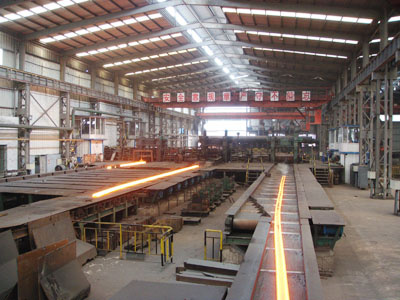

Medium section mill
Main technology characteristics
1. Casting billet directly into step furnace heating.
Continuous casting billet in the furnace temperature can reach 700 degree above, the heating time can be reduced by 30%. According to the balance with rhythms of steelmaking continuous casting production, the year of continuous casting billet hot charging ratio as high as 70%, thus can greatly reduce energy consumption.
2. Flexible rolling mill type which can realize continuous no twist rolling bar and profiles.
In order to meet the needs of the whole alloy bars and different profile rolling production, while selecting a mill, in addition to the horizontal mill and vertical mill, also chose flat/made convertible rolling mill and universal mill two special models. In the production of alloy round steel and six Angle bar, flat vertical mill for the use of vertical mill no twist rolling (implementation), and production of channel steel, Angle steel, I steel profiles, for the use of horizontal mill. Universal mill can also be used by changing the middle framework from the level of universal mill into two roller mill is used, only in the production of i-steel, use universal h-beam rolling mill, this kind of flexible rolling mill type, suitable for many kinds of production, can produce high quality bar also can produce different profile (including parallel edges i-steel, H section steel and other special profiles), so that the sets of rolling mill has a wide range of products and strong competition ability.
3. The rapid replacement frame as a whole
Across the mill has spare frame, when need to replace varieties, rack placed on automatic replacement car will be prepared for quick replacement.
4. By using temperature control rolling and controlled cooling after rolling
For the production of high-performance alloy bar and other high-quality steel, the temperature control process of controlled cooling after rolling and rolling.
5. Using online detector shape and surface quality of the detector
Online after finishing mill group installed 1 set of quality control system, after finishing the dimensional accuracy and surface quality of rolled piece for automatic tracking detection.
Introduction Of Wixi Qiaolian Heavy Industry Design and Research Institute Co., LTD
The status of our institute
The registered capital of our institute is $30000000(the first registered capital is $5000000).At present our institute has rolling dept.\forge and press dept.\metallurgy dept., and the rolling dept. including the research room of plate facility\figured iron facility\bar and wire facility and surface-treated facility(pickling and alkali cleaning). Besides,our institute have a combat-worthy team which combined with the old, the middle-aged and the young.
In our institute , most of technical cadremen are from China NO.1 Heavy Industry Design Institute, and many designers are graduated from Yanshan University and own strong technical ability. Guo Wan You, the chief designer of our institute, is a senior engineer of full professor level, also he was chief designer when he work in China NO.1 Heavy Industry Design Institute. Meanwhile, there're many experts in our institute, so we can design\develop\install and debug the projects for metallurgy\forging and rolling equipments.
Item which our institute can contract
1)Large rolling equipment
Such as hot rolled wide plate mill below 4500mm\steckel mill\large veneer reeling mill\flat plate mill\ titanium plate mill\figured iron mill\track beam mill\round steel mill\deformed steel mill and so on.
Large black or non-ferrous metal cold rolling mill, such as width 1000~2300 large tandem cold strip mill\semi-tandem mill\reversing mill, 4-roller\6-roller\12-roller\20-rollerrolling mill, rollability normal carbon steel\stainless steel\silicon steel\titanium\molybdenum\copper\and other special alloy.
2) Large forge and press equipment
Such as large oil press above 1000t, large water press above 5000t, free forging press, closure press, drop-forge press, rapid forging machine and so on.
3)Other large nonstandard metallurgy equipments
Such as large cold or hot flattener\flat ban unit\slitting unit\recoiling unit\large pipe
