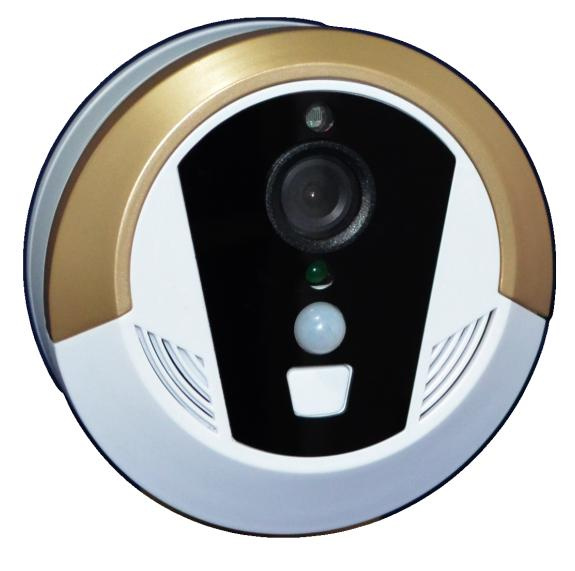

Megapixel Remote Control Auto-Alarm WiFi Video Doorbell with PIR Sensor

Name: Megapixel Remote Control Auto-Alarm WiFi Video Doorbell with PIR Sensor
Brand: china-manufacturer-directory.com
SKU: 763089005
Availability: InStock
Rating: 4.6 (88 reviews)

Supplier:	Shenzhen Winway Electronics Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	WW-A7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lens:	3.6mm
Audio Compression:	G.711
Power Comsumption:	DC 12/24V
Pixel:	1.0MP
Type:	Remote Doorbell
Style:	One-to-Many
Talkback Type:	Color Video
Automation:	Automatic
Peephole:	Peephole
Wireless:	Wireless
Active Doorbell:	Wireless Video Doorbell
Wireless Video Doorbell Function:	Tamper Alarm
Application Scope:	Home
Waterproof:	Waterproof
Power Source:	Plug
Brand:	Winway

Product Description

1)Dual stream encoding (H.264/MJPEG)
2)1/4-inch 1.0 Megapixel CMOS,include 3.6mm fixed lens
3)IR view distance: 8-10m(12pcs leds)
3)Main Flow: 1280*720@20fps
Minor Flow: 640*360@30fps
4)Support Multi-Screen software and CMS
5)Support Protocol:TCP,UDP,IP,HTTP,SMTP,DHCP,DNS,ARP,ICMP,POP3,NTP,IPSec UpnP,RTP,and RTCP
Image Processing:Auto Exposure (AE); Auto White Balance (AWB); Auto Gain Control (AGC). Alarm action;support email message etc.
Built-in Pan/tilt,horizontally 355°,vertically 90°,Support TF Card(Max 32GB)
P2P function is included

Model		WW-A7
	Item	doorbell
	Device Type	1.0 Megapixel CMOS sensor
	Size	1/4
	Day and Night	Yes
	Min.Scene Illumination	0lux(IR ON)
	Infrared sensitivity	Support
	Filter	IR-CUT
LENS
	Lens	3.6 MM
	Focus	Fixed Lens
	Aperture	Fixed Aperture
Video
	Compression	H.264
	Picture Resolution	Main Flow: 1280720@20fps Minor Flow: 640360@30fps
	Flow Type	Dual Stream encoding
	Bit Rate	128-8192kbps
	Bit Rate Type	CBR/VBR
	S/N Ratio	>50DB
	Image enhancement	Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted
	Subtitles input	Support channel name, date/time
	Flip Config	Up/down, Left/right
Audio/ Alarm
	equipment	Built-in MIC,horn
	Audio input/output	one channel audio input, one channel audio output
	Audio Compression	G.711
	Alarm way	Motion Detection:Configure motion detection area,detecting sensitivity is adjustable Cover alarm:The alarm sensitivity is adjustable
	Alarm processing	The control center to monitor,Go to PTZ preset pos,Send E-mail, Log record
	PIR	support
Network
	Protocal	TCP,UDP,IP,HTTP,SMTP,DHCP,DNS,DDNS,ARP,ICMP,SMTP,POP3,NTP,RTP, RTCP,Pelco-D
	Ethernet	Ethernet (10/100 Base-T),RJ-45 connector
	Safety	IP address filtering,User level password protection,The user access log
Software
	WEB Browser	Microsoft Internet Explorer 6.0 and above,google,firefox etc.
	Software Management	CMS and the devices Compatible with ONVIF
	Software intelligence function	Motion detection,Miss object detection, Moving object tracking, counting, Retrograde motion detection, etc.
	Event action	Files are stored to the back end equipment,Send E-mail,Send SMS,Zoom in alarm,Pop ap map ,Go to PTZ preset pos etc
	Mobile Phone	Support iPhone,Android
	Remote Access	DDNS,Software,P2P
Features
	The doorbell visiting log	Keys for hd video at the same time,Mobile phones can be synchronous log and video files, and mobile terminal playback.
	Tamper design	support
	Anti-theft design	Stay in 15 seconds to 30 seconds PIR automatically detects, automatically push the mobile phone screen
Physical properties
	Accessories	Power adapter, Network cable, Stand, Operation manual, CD, Screw bag
	Power Comsumption	DC 12/24V
	Temperature	-10°C--60°C
	Humidity	10%-80%
	Weight	KG
	Dimension	mm LWH
	Certification	CE,FCC
