1. Packing Granular Coffee, Salt, Medicines, Spices, Sugars, Vegetable seeds, peanuts and many other granular products.
2. High speed is 30-60 bags per minute
3. Buffer design for not bursting bulk package bag, this design is for big volume filler and makes buffer efficiency to force big volume and heavy filler dropping.
4. Machine house is #304 stainless steel which meets to GMP standard by pharmacy
5. The operation of the machine is controlled via a computerized operator interface of micro-computer. Parameters are set through this interface. Bag length can be automatically controlled via a film registration eye. Precise bag length and registered cutting is assured.
Features
Cut off blades are guarded for operator safety
Very low noise level during operation
Stainless steel outer frame
No compressed air required during operation
Elements are connected via slip-ring to the roller mechanisms
Spill tray under filling system to stop production contaminating machine
High quality door hinges and locks
Motor adjustment for automatic dwell time seal setting
|
Brand HONDON |

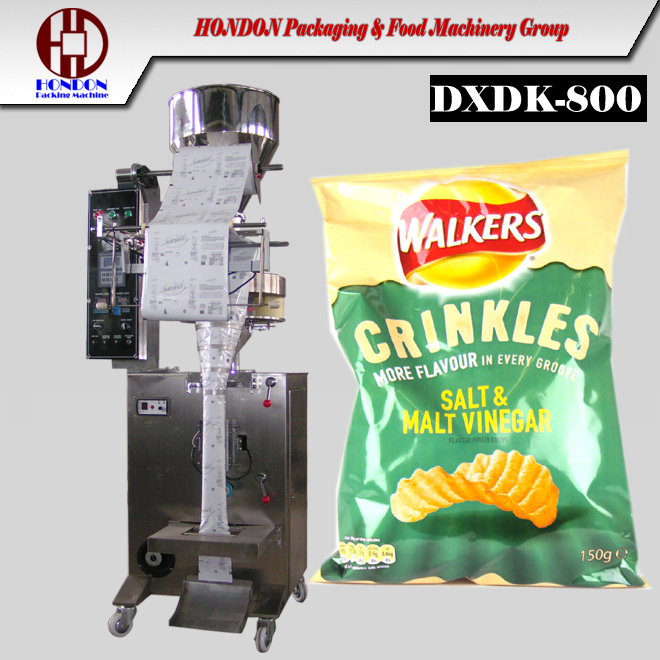

DXDK-800 |
|
Bag size |
(L)100-300mm/(W)40-175(mm) |
|
Packing Speed |
28-60bags/min |
|
Maximum fill range |
1400 ml,1000g |
|
Power voltage |
As your local power design |
|
Weight |
350 (kg) |
|
Dimension L*W*H |
1200X800*2000 (mm 3 ) |
Established in 1986, Hondon Packaging & Food Machinery Group is specialized in producing various packaging machines and food machines.
We are the first one to obtain the international certificate of ISO9001: 2000 edition in packaging line. And some of our products have obtained European countries' product certificate on the CE system.
All products are applied for the country patent in practical new-mode and out-surface design etc.
The machines are applied for the packaging of soft bags of granule, powder, sauce, tablets etc in the industry of medicine, food, daily expenses, chemical, dairy products, quick noodles condiment, tea etc.
The packaged bags are even and perfect owing to the unique design of the forming system. All the processes of bag making, measuring, filling, sealing, cutting, counting and printing can be done automatically.
The producing procedure is proceeding on the monitor of Canadian Emulation Inc. Our products are very popular in the Domestic market and exported more than 40 countries and regions, such as USA, Canada, Italy, Egypt, Turkey, Iran, Russia, Malaysia etc.
Operation in honest, leading the industry, creating fine products, famous in the industry. We provide the packaging equipment of non-standard for user, in the meantime of providing the various packing machines.
We hope to establish friendly business relations with domestic and abroad customers, create good future together.
