Product Specifications
| Prod Model: |
2010011501 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

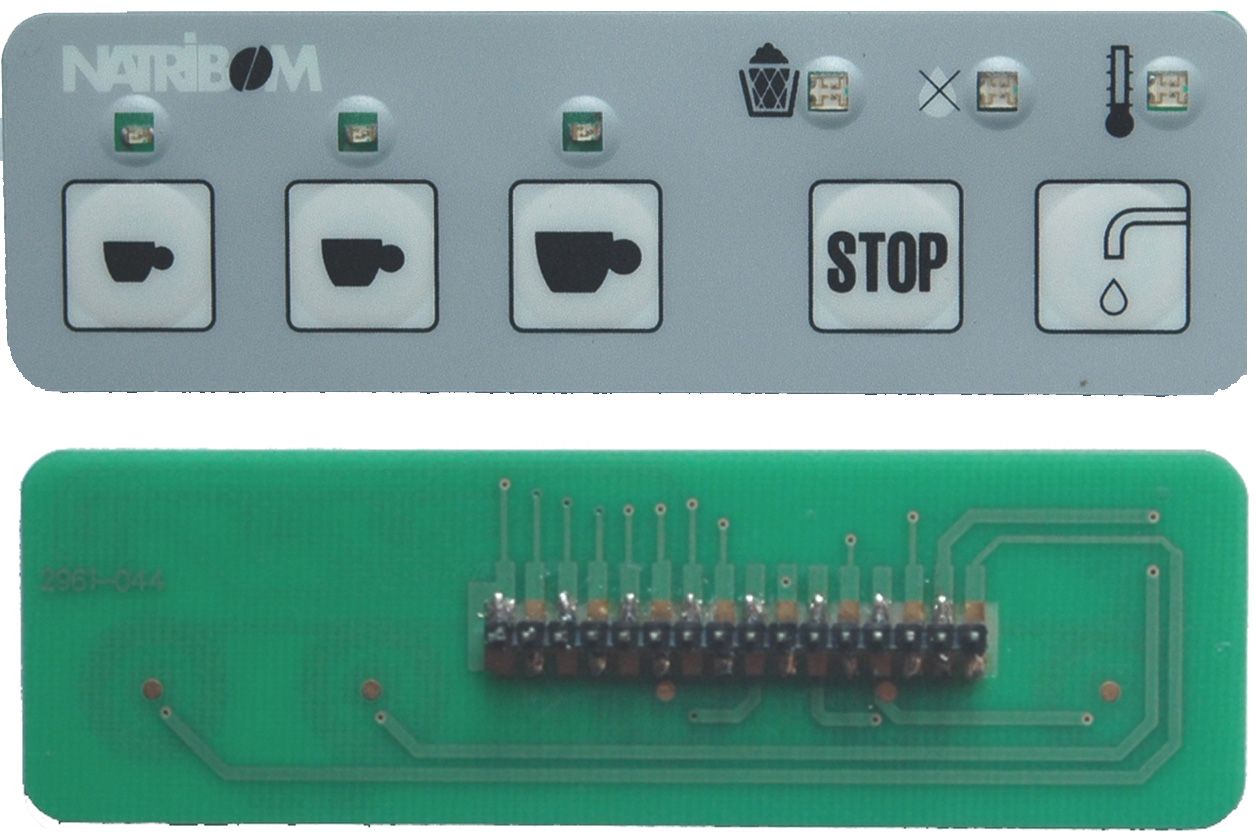

It is a membrane switch with PCB panel instead of circuit. Contact point can be metal dome, poly dome and flat. Metal dome, LED and other components can be pasted on the PCB panel.
Electrical features
Return circuit resistance: Generally 1ohm length cm*width mm(can be different when necessary)
Contact resistance: Bellow 2ohm
Circuit rating: Bellow 35VDC, 100mA, 750mV (as the request of customer)
Dielectric withstand voltage: 250VRms(50-60Hz 1min)
Insulation resistance: Above 100Mohm100V
Contact bounce: Bellow 100ms
Mechanical features
Life expectancy: Flat type more than 1 million times
Tactile type more than 500, 000times
Actuation force: Flat type 50-280g
Tactile type 180-400g
Switch stroke: Flat type 0.1-0.4mm
Tactile type 0.5-1.0mm
Environmental
Operating temperature: -22-60degrees
Storage temperature: -30-75degrees
Humidity: 35degrees, 90%-95%, 180hours
Wenpher was established in Taiwan since 1988, Wenpher has been a professional manufacturer of Membrane switch, Touch panel, Name plate, FPC, EMI shielding material manufacturer with the latest technology, superior quality, competitive pricing, on-time delivery and satisfying services both overseas and domestic customers.
Our strong engineering design ability, ISO9001: 2000 certified quality management system and professional sales and marketing team is our strong and powerful backup force.
Mission
To provide innovative, cost effective products, flexible solutions and satisfying services to our customers.
Goal
To be the best partner of customers, suppliers and distributors, Wenpher treat all of them with much respect, and hope to create new valuable and fruitful business under mutual ventures and strategic alliance.
