Mepc. 107 (49) Approved 15ppm Bilge Oily Water Separator/Oil Sludge Separator
Product Specifications
| Prod Model: |
DY15PPM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
0.25m3/H~5.0m3/H. |
| Oil Content In Effluent Water: |
Less Than 15ppm. |
| Certificate: |
CCS,Ec,ABS,BV. |
| Usage: |
Ships and Vessels. |
| Standard;: |
Imo Mepc107(49). |
Product Description

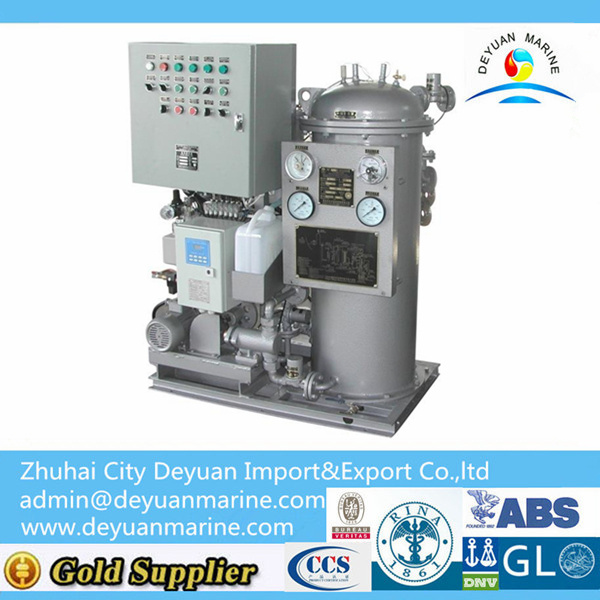

MEPC. 107 (49) Approved 15ppm bilge oily water separator/oil sludge separator
China Deyuan Marine Fitting Co.ltd is a professional supplier of marine equipment,such as 15ppm bilge separator,15ppm oily water separator,15ppm bilge alarm,oil content meter,marine sewage treatment plant etc.Pls contact us for more details if you are interested.
| Type | DY-0.25 | DY-0.5 | DY-1.0 | DY-1.50 | DY-2.0 | DY-2.5 | DY-3.0 | DY-4.0 |
Rated capacity
(M3/H) | 0.25/0.31 | 0.5/0.62 | 1.0/1.25 | 1.5/1.87 | 2/2.25 | 2.5/3.12 | 3/3.75 | 4.0/5.0 |
| Power (kw) | 0.75 | 1.10 | 1.10 | 1.10 | 2.20 | 2.20 | 3.0 | 3.0 |
Steam heater
M2/kw | --- | --- | 1/30 | 1.5/45 | 2/60 | 2.5/75 | 3/90 | 4/120 |
15ppm
Bilge alarm | including | including | including | including | includig | including | includig | includig |
| base | #5
1000*600 | #6
1100*690 | #6
1050*1084 | #8
1100*1130 | #8
1900*1120 | #8
1700*1500 | #10
2400*
1700 | #10
2500*
2000 |
| dimension | 1320 | 1460 | 1500 | 1660 | 1700 | 1900 | 2020 | 1820 |
Dry weight/
Net weight | 300/450 | 600/800 | 800/860 | 1060/1810 | 1260/
2260 | 1500/
2800 | 1800/
3200 | 2100/
3900 |
