Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Can Be Customized |
| Color: |
as Your Request |
| Structure: |
Rotary Type Drier |
| Movement Way: |
Fixed |
| Heating Mode: |
Convective |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
Product Description

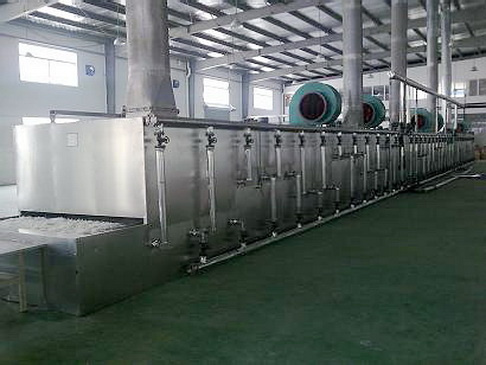

Several-decked mesh-belt drying machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as food, fruit, marine products, dewatering vegetable, herbal medicine of traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not allowed. The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality. The de-watered & filtered cake state paste material should be made into particles or strips before drying process. The materials are uniformly distributed on the mesh-belt by the material feeder. The mesh-belt generally adopts 12-60 mesh stainless steel mesh and it is drawn by a transmission device and move inside the drying machine. The drying machine is composed of several sections. For each section, the hot air is circulated separately. Part of exhausted gas is exhausted by a special moisture exhaust blower. The waste gas is controlled by an adjustment valve. The hot air passes through the mesh-belt covered with bring water material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final products after the drying process will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the user's requirements. The number of section might be selected according to the production demands.
|
Items |
Model |
|
DW-25 |
DW-35 |
DW-45 |
|
Heating unit |
Double rooms |
Three rooms |
Five rooms |
|
Material processing area (m2) |
25 |
35 |
55 |
|
Steam working pressure (Mpa) |
0.4~0.5 |
0.4~0.6 |
0.4~0.7 |
|
Drying cycle (minute) |
22~220 |
45~450 |
60~600 |
|
Water evaporation capacity (kg/h) |
70~220 |
100~330 |
170~550 |
|
Power (kw) |
12.78 |
15.78 |
24.78 |
|
Weight (t) |
6500 |
9500 |
12000 |
|
Overall dimensions (l*w*h) |
9875×2408×3385 |
11475×2408×3385 |
14675×2408×3385 |
Zhengzhou Taida Mining and Metallurgy Equipment Co., Ltd is an import&export joint-stock enterprise, producing mainly drying, mining, metallurgy and construction materials equipment and forming R&D, production and sales into an integral system. The headquater of the company is located in Hi-tech Development Zone, Zhengzhou, covering an area of 20, 000 square meters. It has three branch companies and a R&D department, owning RMB 50 million in fixed assets, more than 500 employees, and an annual output of over 500 sets of complete machines and the production capacity of more than 10, 000 tons accessories. With the introduction of technology, craftsmanship and testing base which are advanced both at home and abroad.
We provide five kinds of products: Energy-saving dryers, Heating Equipments, Mineral dressing products, Sand making products, Normal atmosphere gasifiers. Main products include: Rotary dryer, Rotary Drum Agglomerator / Granulator, Chicken manure dryer, Muddy Material dryer, Coal Slime dryer, mesh-belt dryer, Cereal tower dryer, Rotary kiln, Vertical mechanized kiln, Sand dryer, and other industry dryers, drying machine, gasifier, furnace and every kind of crusher or mill and so on.
Taida company advances with the time, brings forth and innovates new thoughts, makes good advantage of technology and personnels, and focuses on technology development as well as products renovation. Since we adopt the internal control standard which is superior to national machinery industry standard and carry out the three-level self-inspection quality managing accountability system strictly, all of our products have got acceptance for several consecutive years in the annual national inspectation of mining machinery. Each year we are granted by the province government"star enterprise" and "advanced unit"as well as the honour of "faith-keeping and law-following enterprise".
