Jiangsu East China Bellow Market Co., Ltd >> Metal Bellows

Metal Bellows

Name: Metal Bellows
Brand: China-Manufacturer-Directory.com
SKU: 722243285
Availability: InStock
Rating: 4.6 (54 reviews)

Supplier:	Jiangsu East China Bellow Market Co., Ltd
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Stainless Steel
Standard:	GB
Connection:	Flange

Product Description

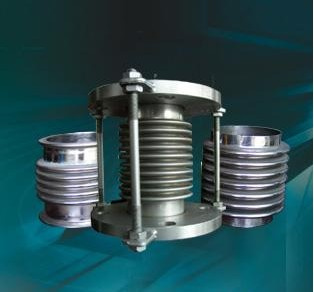

Metal bellows

1. CE&ISO CERTIFICATE
2. Offer OEM production
3. Dicount for agent
4. Working pressure: 10bar-25bar

Nominal Diameter DN	Ripple Qty.	Working Pressure(bar)						Effective area (cm 2 )	Max. Outside Diameter (mm)	Supplied Length(mm)
		10	16	25	10	16	25			Supplied Length(mm)
		Axial Compensation(mm)			Force Compress(N/mm)					Flanged End		Welded End
32	8	20	18	15	26	63	98	16	225	160	250	264	280
40	8	20	18	15	44	89	106	23	244	164	259	269	289
50	8	20	18	15	70	70	138	37	259	172	276	282	306
65	8	26	22	19	44	55	68	55	270	215	294	300	322
80	8	34	28	25	33	41	54	81	284	240	338	344	366
100	6	40	35	29	75	93	117	121	304	235	317	323	345
125	5	38	34	29	59	74	92	180	334	282	314	316	342
150	5	40	34	29	62	78	97	257	364	282	339	338	367
200	4	42	38	34	68	78	111	479	442	280	348	348	372
250	4	59	52	47	42	45	55	769	507	315	379	415	379
300	4	59	52	47	59	65	71	1105	562	366	427	466	467

Jiangsu East China Bellow Market Co., Ltd is a manufacturer of transformer oil conservators, metal & nonmetallic expansion joints, auxiliary equipment of power stations, metal hoses as well as stents and hangers with well-equipped testing equipment and strong technical force.

Our products are in strict accordance with American EJMA standard. Meanwhile the items passed quality certifications of GB/T19001: 2000 and ISO9001: 2000 years ago. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in petroleum, chemical industry, metallurgy, construction, shipbuilding, pharmacy and other industries.

Our products are widely recognized and trusted by users all over the world such as India, the Middle East, the USA and so on. We can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
