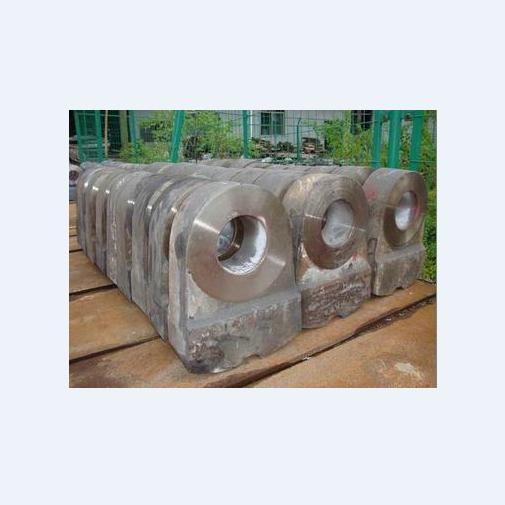

Metal Casting Compound Iron Hammer

Product Specifications

Prod Model:	JP-03
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No:	Jp-03
Material:	Manganese Steel or Chromium
Application For:	Hammer Crusher
Size:	Kinds of Size or OEM
Casting Method:	Sand Casting
Type:	Hammer Crusher
Application:	Stone Industry
Drive:	Hydraulic
Crushing Style:	Extruding & Milling
Compressive Strength (',For Crushing):	>300MPA
Crushing Degree:	Fine Grinding Machine
Finished Surface:	Outer Surface Process

Product Description

1.Production mode: Sand casting & Precision casting

2.Material:
 1).High Manganese Casting:
    Mn13, Mn18, Mn22, Mn13Cr2, Mn18Cr2, Mn22Cr2, Mn13CrMo,Mn13CrMoNi...
 2).High Chrome Steel:
    Cr13, Cr15, Cr18, Cr20, Cr25, Cr27, Cr15Mo1, Cr18Mo1,
    Cr25Mo0.5Ni0.5...
3).Any other material as customer's requirement.

3.Our advantage:
1). Easily fitness into crusher
2). High quality on wear-resistant
3). Nice surface
4). Competitive price
5)  More than 13 years OEM manufacturer experience
Compounded Hammerhead for Hammer Crusher&Super elevation Manganese Hammerhead
1.Characteristic
Hammerhead is made of high-chromium cast iron with excellent wear resistance.Its petiole is made of alloy steel with sound comprehensive mechanical behavior. In this way,hammerhead has both excellent wear resistance and safety and reliability.
2.Mechanical behavior
Through proper alloying and heat treatment,the mechanical behavior for head part can be up to HRC59-63;its impact toughness can be up to αk8-12J/cm²;the mechanical behavior for head part can be above os600-800Mpa,ob850.
3.Using effect
When Compounded hammerhead is used to crush cement clinker and limestone,its service life is 2-5 times longer than that of high manganese carbon steel. When it is used to crush mine ore, its service life is 1.5-3 times longer than that of high manganese carbon steel.

Crusher Parts specification
name	model	weight(kg)	number of teeth(pcs)	photo number	size(MM)
750*1060   Jaw Crusher	fixed Plate	1250	8	K3206-3b	1680*1040*145
	movable  Plate	1420	7	K3206-20b	1890*1040*145
	side plate up	230*2		K3107-5
	side plate dowm	154*2		K3107-3
600*900    Jaw Crusher	fixed Plate	735	9	K3126-01-06D
	movable Plate	745	10	K3126-02-20D
	side plate right and left	235*2
	side plate up	135
	side plate dowm	86
500*750   Jaw Crusher	fixed Plate	490	9	K3204-1D	1170*750/820*110
	movable Plate	520	8	K3204-2D	1330*750*130
	side plate right and left	125		K3201-42
350*750   Jaw Crusher	fixed Plate	280	16	K31X05-
	movable Plate	335	15	K31X05-
	side plate right and left	65		K3105-7 8
150*750   Jaw Crusher	fixed Plate	100	25	K31X02
	movable Plate	110	26	K31X02
	side plate right and left	20
300*1300  Jaw Crusher	fixed Plate	445	33	K31X10-2	1305*800*90
	movable Plate	455	34	K31X10-4	1300*860*90
	side plate right and left	70*2
400*600   Jaw Crusher	fixed Plate	215	12	K3103-2
	movable Plate	218	13	K3103-3
	side plate right and left	80*2		K3103-11 13
150*250   Jaw Crusher	fixed Plate	22	8	K3101-2
	movable Plate	24	9	K3101-3
	side plate right and left	10
250*1200  Jaw Crusher	fixed Plate	385	30	K31X06-3
	movable Plate	400	31	K31X06-2
	side plate right and left	62		K31X06-10 11
250*1000   Jaw Crusher	fixed Plate	310	25	K31X04-4
	movable Plate	315	26	K31X04-3
	side plate right and left	62*2
250*750   Jaw Crusher	fixed Plate	205	19	K31X08-2
	movable Plate	216	20	K31X08-1
	side plate right and left	62		K31X08-7 8
250*500   Jaw Crusher	fixed Plate	110	13	K3128-5
	movable Plate	120	14	K3128-23
	side plate right and left	30
250*400   Jaw Crusher	fixed Plate	90	11	K3124-001-5	635*400/460*70
	movable Plate	110	12	K3124-002-13	725*400*90
	side plate right and left	38*2
	fixed Plate		14		635*400/460*70
	movable Plate		15		725*400*90
1315Impact Crusher	impact liner	38	40	K3611.1-1
1214Impact Crusher	impact liner	28		K3602
	liner01-11	22
	liner-13	28
	blow bar length1050	170		K3603.04-13
	blow bar length1610	270		K3602.04-14
900*1200   Jaw Crusher	fixed Plate	1962		K3105.1
	movable Plate	1840		K3105.2
900*1200   Jaw Crusher	fixed1	675*2			1250*845*145
	fixed2	430			1250*435*145
	movable1	650*2			1180*860*145
	movable2	400			1180*430*145
	side plate up	230*2			1260*900/590*35
	side plate dowm	95*2			950*582/236*35
press block (2pcs/set)	250*1200	22/set
	400*600	38/set
	250*1000	20/set
	600*900	36/set

4. More crusher spare parts:

4.1Jaw crusher parts:
Jaw plate(jaw liner), toggle plate, up guard plate, down guard plate, set adjustment, tension rod, toggle gasket, spring, tension rod, eccentric shaft, end cover, block, moving jaw, frame, spring, bolt and nuts, washer.

4.2 Impact crusher parts:
Blow bar(flat hammer), adjustment bar, impact plate, liner plate, frame(impact rack), cover, , bolts, nuts, washer, etc

4.3 Hammer crusher parts
Hammer head, liner plate, bolt, nuts, washer

4.4 Cone crusher parts:
Concave, mantle, eccentric shaft, copper bush, bolts, nuts, washer, etc.

4.5 vibrating screen parts
Screen mesh, roller. Bolts, nuts, washer

We specialized in supply various kinds of wear parts for mining equipment, if you have any request, please feel free to send to me.
