Metal Standalone Access Control RFID Reader Device S100mf
Product Specifications
| Prod Model: |
S100MF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wight: |
0.75kg |
| Size: |
120*80*25mm |
| Usage: |
Access Controller |
Product Description

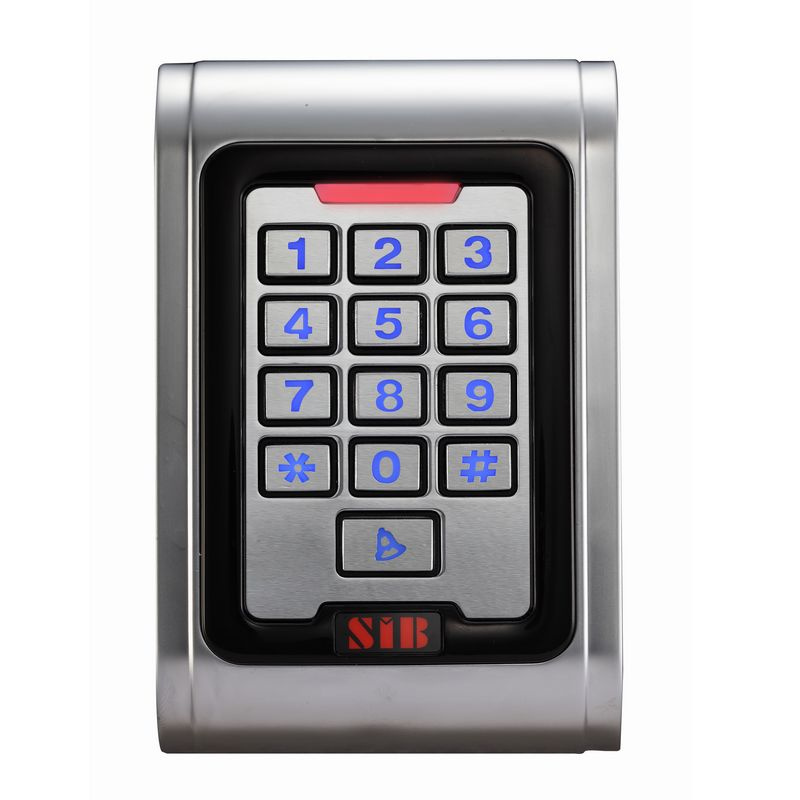

The unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in either a bright silver or matt silver finish. The electronics are fully potted so the unit is waterproof and conforms to IP68. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards,13.56MHz Mifare cards. The unit has many extra features including lock output current short circuit protection, Wiegand output , and a backlit keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons.
|
Operating Voltage |
DC 12V±10% |
|
User Capacity |
2000 |
|
Card Reading Distance |
3-6 cm |
|
Active Current |
<60mA |
|
Idle Current |
25±5 mA |
|
Lock Output Load |
Max 3A |
|
Alarm Output Load |
Max 20A |
|
Operating Humidity |
10%- 90% RH |
|

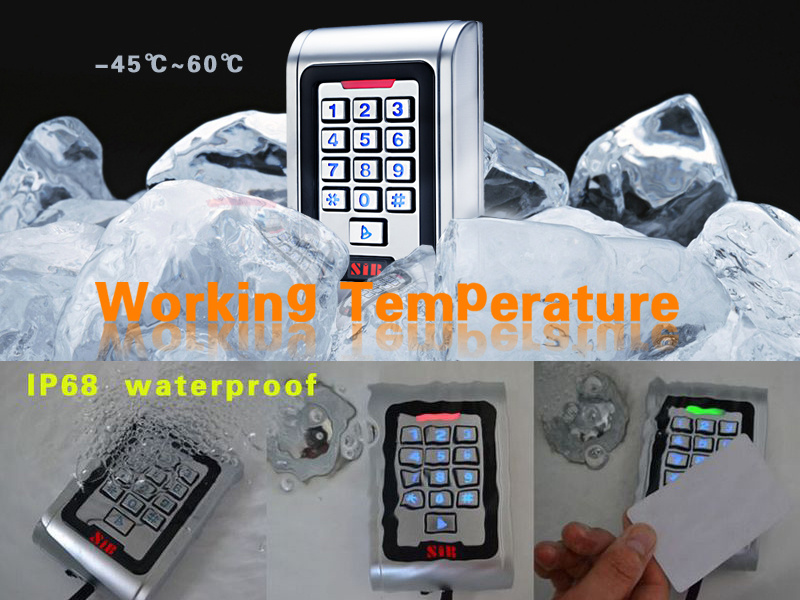

Waterproof |
Conforms to IP68 |
|
Adjustable Door Relay time |
0 -99 seconds |
|
Adjustable Alarm Time |
0- 3 minutes |
|
Wiegand Interface |
Wiegand 26 bit |
|
Wiring Connections |
Electric Lock, Exit Button, External Alarm,External reader |
