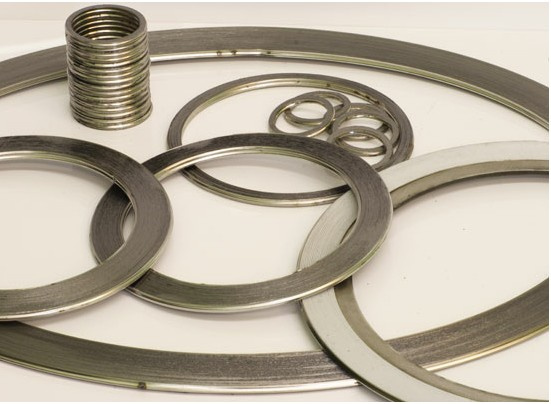

Metallic Kammprofile Gasket Basic Type

Product Specifications

Prod Model:	TFN16-520
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Sealing
Shape:	O-Ring
Standard:	Standard
Material:	Metal

Product Description

Metallic Kammprofile Gasket
Type: Basic Type
Material:SS316.304.316L,Monel400,Inconel 600 ect.
Facing Material:Graphite,PTFE,Expanded PTFE ,Mica


Kammprofile Gasket is made up of serrated metal core with a soft facing material.
The flat metal core is machined on each contact face with concentric serrations.
It is the preferred design when improved performance at low seating stresses is needed.

Material:

Core   Material	Maximum Temperature	Core Material	Maximum Temperature
Stainless Steel 316L	550°C	Inconel 625	450°C
Stainless Steel 304	550°C	Incoloy 825	450°C
Monel 400	600°C	Hastelloy B-2	450°C
Nickel 200	600°C	Hastelloy C-276	450°C
Inconel 600	900°C	Titanium	350°C
Facing Material	Maximum Temperature	Facing Material	Maximum Temperature
Graphite	550°C	PTFE	260°C

Enquiry:

Inquiry / Order Example
Size	Pressure	Material			QTY
2"	300#	4.0mm TK   SS316L core with Loose Guide Ring. 0.5mm TK Graphite Layer			100pcs
DN50	PN40				100pcs
