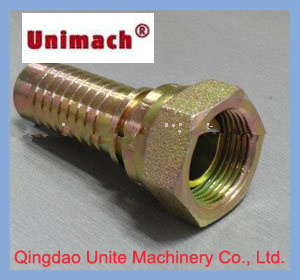

Metric Female Thread Hydraulic Hose Fitting with Swivel Nut

Name: Metric Female Thread Hydraulic Hose Fitting with Swivel Nut
Brand: china-manufacturer-directory.com
SKU: 697319062
Availability: InStock
Rating: 5 (145 reviews)

Price:	US $ 0.012-0.85/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

hydraulic hose fitting/adapter/adaptor

Material: Carbon Steel, Stainless Steel
Surface Treatment: Yellow Zinc-Plated

Hydraulic adaptor including:
Hose Joint,Hydraulic connector, union, cross,tee, elbow, accessories(front ferrule, back ferrule, nut, tube&cap)
1. Material: Carbon Steel, Stainless Steel

2. Surface Treatment: Yellow Zinc-Plated

3. Hose fitting: Metric/BSP/NPT/JIC/ORFS/ORB/SAE/DIN/JIS/Ferrule/Flange/Elbow/tee/cross etc. The standard sizes range from 3m to 25mm, 1/8" to 1" with variety of end connections according to BSP, NPT, BSPT, METRIC, UNF, or any other thread standard.

4. We offer OEM seivice base on clients drawings or samples.

5. Delivery time: within 50days.

6. SGS China manufacturer company certification.

PRODUCTS PACKAGE

1.Material :	Carbon Steel, Stainless Steel .etc.
2 .Size:	1/ 8 "- 2 "
3. Pressure Rating:	15000PSI
4.Logo:	Any logo is available
5.MOQ:	200 pcs
6.Samples Time:	(1)3-5days-If you want to customize your product and logo.
	(2)1day-For our existing samples for reference.
7.OEM Accepted	Yes
8.Certification available:	Yes
9.Packing Details:	Box Inside & Wooden pallets
10.Production Capacity:	1000000pcs Per month.
11.Payment Term:	(1) T/T,WESTERN UNION
	( 2)T/T 30% IN ADVANCE,T/T 70% AFTER COPY OF B/L

Number:20241
Name:45°Metric Female Flat Seal
Description:
PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	H	S2
20241-14-04	M14X1.5	6	4	40.5	8.5	18.5	19
20241-14-05	M14X1.5	8	5	42.7	8.5	19.3	19
20241-16-05	M16X1.5	8	5	44.4	8.5	20	22
20241-18-06	M18X1.5	10	6	45.7	8	21.4	24
20241-22-08	M22X1.5	12	8	58.9	10	24	27
20241-30-12	M30X1.5	20	12	78.1	11	30	36
20241-36-16	M36X2	25	16	85.7	13	31.5	41
20241-42-20	M42X2	32	20	97.3	15	36.6	50
20241-27-10T	M27X1.5	16	10	68.6	10	24.3	32
20241-36-12T	M36X2	20	12	75	13	27.5	41
20241-36-14T	M36X2	22	14	77.3	13	27	41
20241-39-16T	M39X2	25	16	83.9	13	29.7	46
20241-45-20T	M45X2	32	20	94.5	15	33.8	55
20241-52-20T	M52X2	32	20	94.5	17	33.8	60
20241-52-24T	M52X2	40	24	108.5	17	37.7	60
20241-60-28T	M60X2	45	28	118.7	20	43.6	70
20241-64-32T	M64X2	50	32	127.8	23	45.6	75
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20242-xx-xx;

Prod Model:	20241
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hydraulic Fitting:	Hose Fitting
Surface:	Zinc-Plated
Color:	White or Yellow
Original Place:	Qingdao, China
Manufacture:	Factory
Material:	Medium Carbon Steel
Connection:	Male
Standard:	BSW

QINGDAO UNITE MACHINERY Co., Ltd(HAITE GROUP) is located in the beautiful seaside city-Qingdao China, which has very beautiful picturesque view and very convenient transportation. Qingdao port is one of the biggest ports of China and our factory is about 15 minutes to Qingdao airport. We specialize in the manufacturing of hydraulic fittings for many years and we have distributors and buyers all over the world.

Products: Our main products include: Ferrule, Hydraulic fitting(Metric, British, American, staplelok, etc. ), Banjo, Adaptor, Hose assembly, and Hose Crimper machinery.

R&D: We have big talent pool which has a large group of exporters and engineers. Some of them have been working in this field for more than 10 years and they have strong knowledge and experience in new product development and quality guarantee.

QC: We adopted an advanced and strict quality control system to guarantee our products comply with or exceed the quality standard.

Market: We focus on both domestic and international markets. Our buyers and distributors include some big and prestigious companies.

Principle: Quality first! Your satisfaction is our biggest goal!
