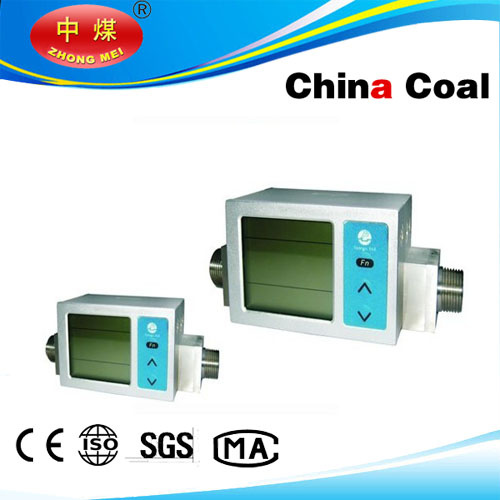

Mf5612 Mf5619 Digital Mass Flowmeter

Name: Mf5612 Mf5619 Digital Mass Flowmeter
Brand: China-Manufacturer-Directory.com
SKU: 700319882
Availability: InStock
Rating: 4.8 (29 reviews)

Supplier:	Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Price:	US $ 100-10000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	MF5612
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Mf5612
Path:	12mm Mechanical Interface NPT1/2
Maximum Flow:	200, 300
Minimum Flow:	0.3
Span Ratio:	100:1
Working Temperature:	-10 ~ 55oc
Accuracy:	?à0.6-1%
Main Application:	Corrosive Liquid/Gas
Size:	DN50-100
Sensor:	Tube/Flange
Type:	Vortex Flow Meter
Measuring Media:	Liquid
Measuring Principle:	Electrical Principles

Product Description

Description:
MF5600 series mass flow meter specifically for the need to monitor and the body separate application requirements and design. As the oxygen supply in hospital small air separation system. The flowmeter standard industrial user interface (RS485/4~20mA) and user defined alarm function better in different places or network monitoring. Existing products were MF5612 and MF5619 respectively 0-300SLPM and 0-800SLPM gas flow measurement.
Product features:
-Split display can be installed through a specially designed connection cables away from where the gas line
-Meter standard RS485 communications module, optional with 4~20mA standard current output, PULSE output
-Polished stainless steel tube to the oxygen measurement
-Super wide-range for precise control of gas flow
-Built-in security plug-in allows easy installation
Technical parameters:

	MF5612	MF5619
Path	12mm Mechanical interface NPT1/2	19mm Mechanical interface NPT3/4	mm
Maximum flow	200, 300	600, 800	SLPM
Minimum flow	0.3	0.8	SLPM

Span ratio	100:1
Precision	1.5
Repeatability	±0.75		%
Maximum working pressure	1.0		MPa
Working temperature	-10 ~ 55		oC
Humidity	< 95%RH(No freezing, no condensation)
Working power supply	8-24Vdc, 35mA
Output	4-20mA; RS485;Pulse
Mechanical interface	NPT, BSPTCan be customized according to user needs
Calibration conditions	Air, 20oC, 101.325 kPa
