Zhangjiagang Oriental Construction Material Co., Ltd. >> MGO Board Waterproof Partition Board

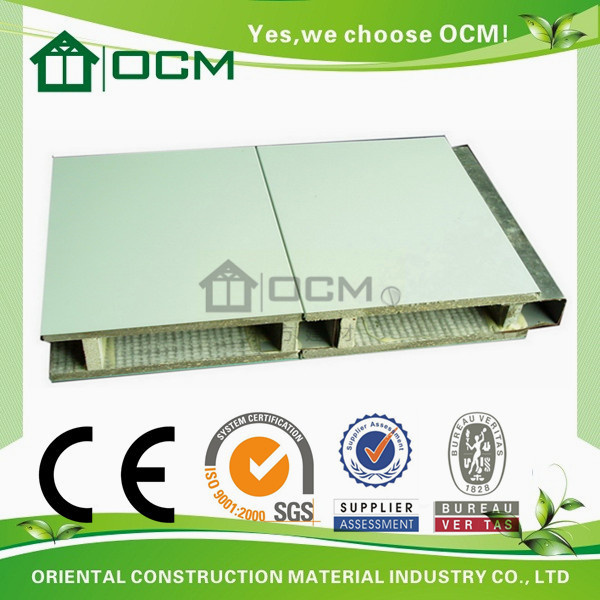

MGO Board Waterproof Partition Board

Name: MGO Board Waterproof Partition Board
Brand: china-manufacturer-directory.com
SKU: 708646865
Availability: InStock
Rating: 5 (82 reviews)

Supplier:	Zhangjiagang Oriental Construction Material Co., Ltd.
Price:	US $ 3.25-25.00PCS
Min Order:	100PCS
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	OCM MgO board
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Density:	1.0-1.3G/Cm3
Surface Treatment:	Standard or Slurry Treatment
Backside Treatment:	Standard or Sanding
Fire Resistant Time:	3 Hours
Delievery:	15 Days
Certificate:	CE,ASTM ,SGS,ISO9001:2000 QC System
Sample:	Free
Quality:	Grade a
Grade:	Grade A
Thickness:	10mm
Appearance:	Panel
Material:	Non-asbestos
Type:	Magnesium Oxide Board
Surface Finishing:	Glossy
Shape:	Square
Refractory Temperature:	Over 2000 ℃
Usage:	Building
Color:	Red,Green,Grey,White and So on
Edge:	Square,Grooved,Tapered,Beveled

Product Description

OCM MGO board is made from MGO board through special processing, make its surface or backside be sanded

>Main feartures:

A. Mineral based: The main ingredient is magnesium oxide environmentally friendly. It does not contain asbestos or any other known toxic material
B. Fireproof: A same material is used in some parts of the world to line industrial blast furnaces
C. Water resistant: And does not leach
D. Flexible: Does not break or crack easily. Wastage is therefore reduced. Flexibility is enhanced when wet.
E. Impact resistant: 6mm MGO boards are at the same level with 9-12mm gypsum boards
F. Thicker MGO boards 8-12mm are much stronger

>Size:
*Thickness: 3mm-25mm
*Standard size: 1200*2400mm; 1220*2440mm
*The Max length is 3660mm and the max width is 1220mm
*other sizes can be cut as per requirements.
*Surface threatment: Slurry, Non-slurry and Lamninated.
*Backside threatment: Texture and sanded
*Edge: Square/Tapered/Beveled

Application:
>Partional wall indoor and outdoor
>Ceiling
>Acoustic perforted wall
>Core of pfirepprof door.

Compressive Strength	~20 MPa (3, 000 PSI)
Impact Resistance	> 6 kJ/m2
Tensile Strength	> 5.5 MPa
Density (Specific Mass)	~1000 Kg/m3 (+/-< 2%)
Moisture Absorption	~26% maximum saturation (slow absorption rate)
Moisture Content	~6%
Water Vapour Diffusion	~28 / 35
Specific Heat	~930 J/kgK
Thermal Conductivity	~0.44 W / mK
Modulus of elasticity	~6045 N/mm2
Flexibility UNI E 12372	~20.1 N/mm2 maximum 12mm x 1220 x 2440 = 10 N/mm2
Surface Alkalinity	~10 Ph
Thermal Expansion Hot/Cold	0, 01 mm/mC (from temp +20C to -20C)
Expansion in Water	less than < 0.02% from ambient to saturation
Freeze / Thaw - UNI EN 520	100 cycles without notable effects
Frost Resistance	no water drops form on surface
Combustibility / Fire Ratings	non-combustible / 12mm exceeds 1 hr fire rating
Dimensional tolerance	thick 0.2mm / width 2mm / length 3mm / Sq. 3mm
Toxicity Pollutants Heavy Metals - UNI EN 12457-2	Below measurable levels of test instruments
Asbestos Analysis	Absent - not measurable
Formaldehyde Analysis	Absent - not measurable
Sound Attenuation (9mm)	tested design ASTM E90 = STC 48, 50, 55, & 60
Color	Slate Grey and Chalk White
Surface texture	smooth one side; uniform machine textured back
Basic Compounds	(MgO)+(natural silicates)+(glass fibre)+(wood fibre)

Zhangjiagang Oriental Construction Materials Co., Ltd. located in Zhangjiagang city, Jiangsu province, China. We are a comprehensive enterprise combining researching, manufacturing, processing and trading magnesium oxide products. Our factory name is Oriental Construction Material Industry Co., Ltd. It covers an area of 120, 000 square meters with annual production ability of 20, 000, 000 square meters.

Business scope:

We not only supply finished products including MGO board, MGO ceiling, decorative MGO board, MGO sandwich panel and fiber cement board. But also supply raw materials and technology. With 12 years manufacturing experience, we have successfully cooperated with clients in Brazil, UK, US, Australia, Bulgaria, Kazakhstan, South Africa and the Middle East.

Enterprise Culture:

We carry out the principle--Quality is the First, Client is the King, and Win-Win Cooperation. We are willing to develop together with the friends from all over the world.

Enterprise Offices:

Factory: N0.1 South Juxin Road, Juqiao Industrial Park, Zhangjiagang city, Jiangsu, China(Mainland)

Sales Office: Room 2703, Oriental Plaza, Zhangjiagang city, Jiangsu, China (Mainland)

Welcome you to visit us.
